£6.08
excl. VAT
£7.30 incl. VAT
£7.30
incl. VAT
£6.08 excl. VAT
In stock
Expected to ship on Wednesday 23 September
Product details
| Body height | 32 mm |
|---|---|
| Cone angle | 60 ° |
| Connection 1, thread diameter | 3/8 Inch |
| Connection 1, thread type | BSP |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 3/8 Inch |
| Connection 2, threads per inch | 18 |
| Connection 2, thread type | NPT |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection no 1 threads per inch | 19 |
| DIN standard | 7627 |
| Includes | Coupling |
| Material | Stainless steel AISI 316L |
| Product details | Screw-in side: NPT, BSP cutting ring fitting with cone 60°, WD = FPM/Viton flat seal on screw-in side, Stainless steel: AISI 316 ti, Temperature range: -60°C to +400°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | n/a |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 57 g |
| Dimensions | 43 × 24 × 22 mm |
| Dangerous goods | No |
You might also like
BPA000338533
PH Hydraulik Insert DN25-1" BSP SS PF2516SS
£34.33 excl.
£41.20 incl.
In stock
Expected to ship on Thursday 24 September
BPA000258258
PH Hydraulik Swivel Connector M/F 25S x 3/4" BSP WD SS EGESD25SR34WDSS
£53.62 excl.
£64.34 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288392
PH Hydraulik Male Stud coupling 8S x 3/8" BSP SS GES8SR38SS
£3.71 excl.
£4.45 incl.
Backorder available
Usually ships within 3–8 weeks

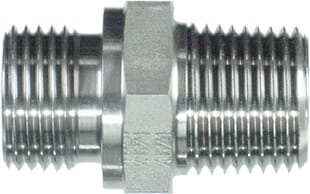

BPA000393209
