£12.14
excl. VAT
£14.57 incl. VAT
£14.57
incl. VAT
£12.14 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M16 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type code | DKOS |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 8 mm |
| Connection 2, thread diameter | M16 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection centre to insert distance | 35 mm |
| Connection no 1 diameter | 8 mm |
| Connection no 1 wrench size | 19.0 mm |
| Includes | Coupling with pre-assembled swivel nuts |
| Product details | Metric double glands, Pre-assembled union nuts with cone and FPM O-rings, Standard: W DIN 3861, Stainless steel: AISI 316 ti, Temperature range: -20°C to +200°C, When fitting stainless steel parts, grease the threads with ceramic, teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for high temperatures, Food-safe, Durable |
| Series connection 1 | 8S |
| Shape | Straight |
| Total length | 39 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 68 g |
| Dimensions | 50 × 24 × 24 mm |
| Dangerous goods | No |
You might also like
BPA000268279
PH Hydraulik Elbow adjustable 16S SS EWS16SSS
£29.86 excl.
£35.83 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000287169
PH Hydraulik Straight Coupling 15L x 8L SS GS158LSS
£7.60 excl.
£9.12 incl.
In stock
Expected to ship on Thursday 24 September

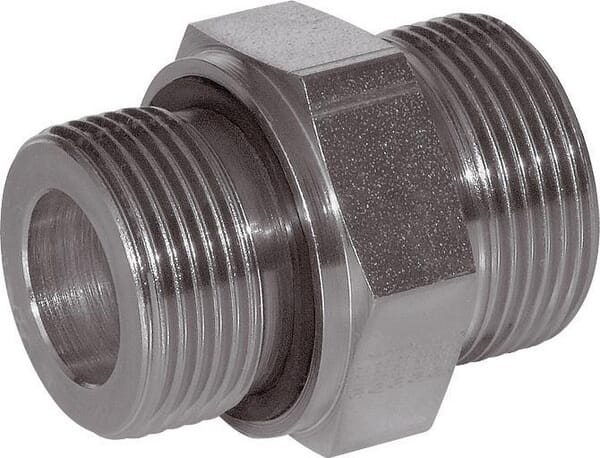

BPA000288043
