£12.69
excl. VAT
£15.23 incl. VAT
£15.23
incl. VAT
£12.69 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Connection 1, thread diameter | 3/8 Inch |
|---|---|
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | BSP |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 22.0 mm |
| Connection no 1 diameter | 10 mm |
| Connection no 1 wrench size | 22.0 mm |
| DIN standard | 2401, 259, 228, 2353 |
| Includes | Coupling with O-ring, WD seal |
| Material | Stainless steel AISI 316L |
| Max working pressure | 630 BAR |
| Product details | Screw-in side: BSP with straight thread, Metric pre-assembled union nuts with cone and FPM O-ring, WD = FPM/Viton flat seal on screw-in side, Stainless steel: AISI 316 ti, Temperature range: -20°C to +200°C, When fitting stainless steel parts, grease the threads with ceramic, teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | 10S |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 97 g |
| Dimensions | 50 × 25 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000344231

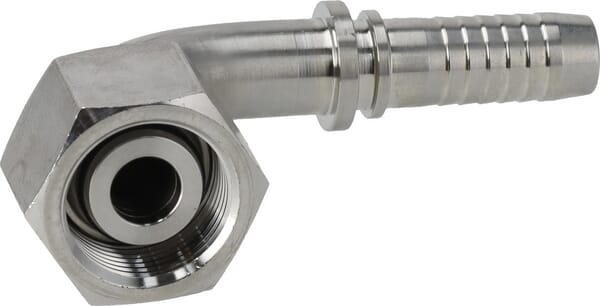

PH Hydraulik Insert DN06-M14x1.5-6S-90° SS PGSO61490SS
£34.14 excl.
£40.97 incl.
In stock
Expected to ship on Thursday 24 September
BPA000288185
PH Hydraulik Male Stud coupling 28L x 1" BPS WD SS GES28LR1WDSS
£19.18 excl.
£23.02 incl.
In stock
Expected to ship on Thursday 24 September
BPA000340942

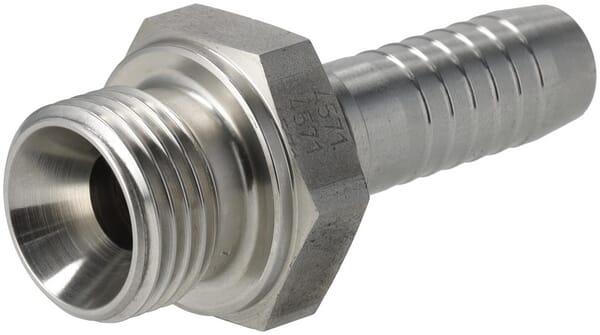

PH Hydraulik Insert DN10-1/4-BSP SS PN104SS
