£56.98
excl. VAT
£68.38 incl. VAT
£68.38
incl. VAT
£56.98 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Connection 1, thread diameter | 1 Inch |
|---|---|
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M36 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 46.0 mm |
| Connection no 1 diameter | 20 mm |
| Connection no 1 wrench size | 41.0 mm |
| DIN standard | 2401, 259, 228, 2353 |
| Includes | Coupling with O-ring, WD seal |
| Material | Stainless steel AISI 316L |
| Max working pressure | 400 BAR |
| Product details | Screw-in side: BSP with straight thread, Metric pre-assembled union nuts with cone and FPM O-ring, WD = FPM/Viton flat seal on screw-in side, Stainless steel: AISI 316 ti, Temperature range: -20°C to +200°C, When fitting stainless steel parts, grease the threads with ceramic, teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | 25S |
| Shape | Straight |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 519 g |
| Dimensions | 75 × 45 × 45 mm |
| Dangerous goods | No |
You might also like
BPA000393272
PH Hydraulik Straight Bulkhead adaptor M/M 1" BSP SS VNBS16SS
£41.96 excl.
£50.36 incl.
In stock
Expected to ship on Thursday 24 September
BPA000341394
PH Hydraulik Cutting Ring 8L SS PR08LSS
£0.86 excl.
£1.03 incl.
In stock
Expected to ship on Thursday 24 September
BPA000237846
PH Hydraulik Ball valve 8L SS BVR08LSS
£76.94 excl.
£92.33 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287860
PH Hydraulik Male Stud coupling 12L x M12 WD SS GES12LM12WDSS
£6.02 excl.
£7.22 incl.
In stock
Expected to ship on Thursday 24 September
BPA000288330
PH Hydraulik Male Stud coupling 8L x M12 SS GES8LM12SS
£2.54 excl.
£3.05 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287192
PH Hydraulik Straight Coupling 20S SS GS20SSS
£11.99 excl.
£14.39 incl.
In stock
Expected to ship on Thursday 24 September
Recently viewed
Free shipping
BPA000121936

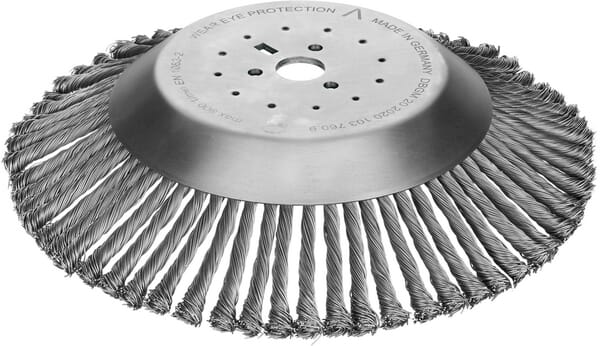

Weed Brush 350 x 64 x 0.8mm fits AS 30 WeedHex 64 knots 4793M201WB
