£72.81
excl. VAT
£87.37 incl. VAT
£87.37
incl. VAT
£72.81 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Connection 1, thread diameter | 1/4 Inch |
|---|---|
| Connection 1, thread type | BSP |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M42 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | BSP |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 50.0 mm |
| Connection no 1 diameter | 30 mm |
| DIN standard | 2401, 259, 2353 |
| Includes | Coupling with O-ring, WD seal |
| Material | Stainless steel AISI 316L |
| Max working pressure | 400 BAR |
| Product details | Screw-in side: BSP with straight thread, Metric pre-assembled union nuts with cone and FPM O-ring, WD = FPM/Viton flat seal on screw-in side, Stainless steel: AISI 316 ti, Temperature range: -20°C to +200°C, When fitting stainless steel parts, grease the threads with ceramic, teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | 30S |
| Shape | Straight |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 705 g |
| Dimensions | 74 × 60 × 52 mm |
| Dangerous goods | No |
You might also like
BPA000301135
PH Hydraulik Swivel Elbow 3/4" JIC SS KOU12SS
£33.60 excl.
£40.32 incl.
In stock
Expected to ship on Thursday 24 September
BPA000263268
PH Hydraulik Bulkhead coupling 35L SS ESS35LSS
£62.13 excl.
£74.56 incl.
In stock
Expected to ship on Thursday 24 September
BPA000336401
PH Hydraulik Insert DN05-7/16 UNF SS PA57SS
£15.42 excl.
£18.50 incl.
In stock
Expected to ship on Thursday 24 September

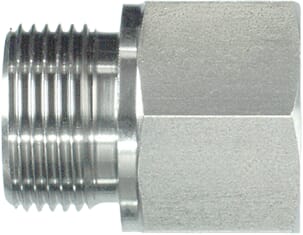

BPA000395982
