£8.60
excl. VAT
£10.32 incl. VAT
£10.32
incl. VAT
£8.60 excl. VAT
In stock
Expected to ship on Thursday 24 September

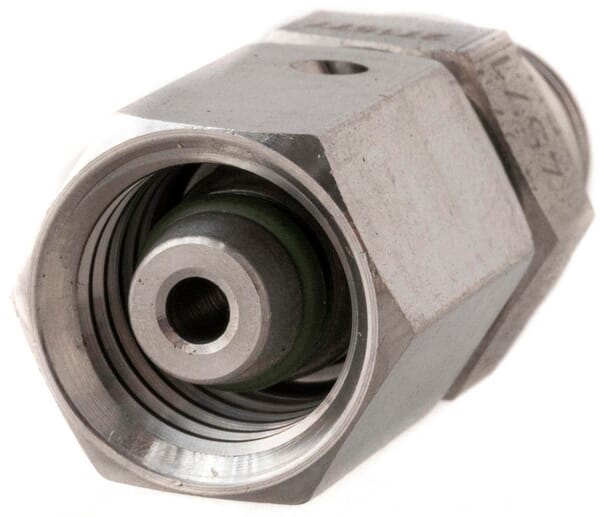

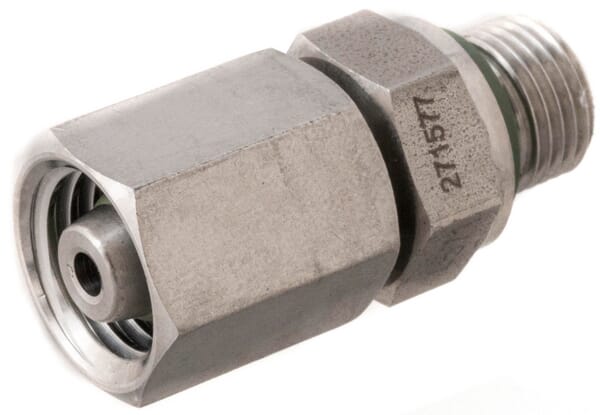

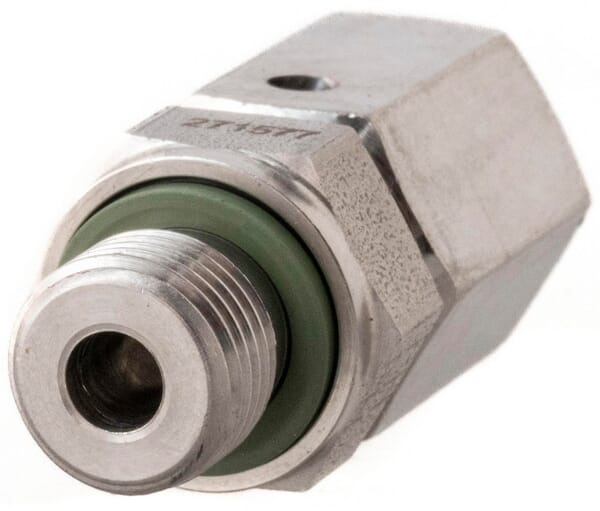

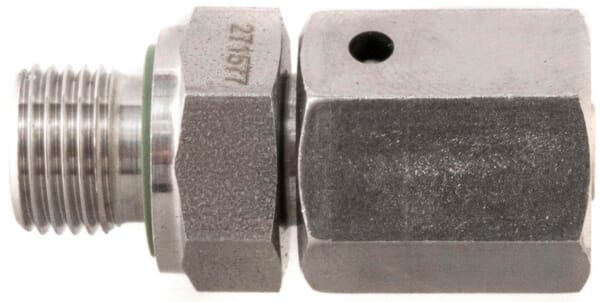

Product details
| Connection 1, thread diameter | 1/8 Inch |
|---|---|
| Connection 1, thread type | BSPP |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M12 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 14.0 mm |
| Connection no 1 diameter | 6 mm |
| Connection no 1 wrench size | 14.0 mm |
| DIN standard | 2401, 259, 2353 |
| Includes | Coupling with O-ring, WD seal |
| Inside diameter | 22 mm |
| ISO standard | 228 |
| Material | Stainless steel AISI 316L |
| Max working pressure | 315 BAR |
| Product details | Screw-in side: BSP with straight thread, Metric pre-assembled union nuts with cone and FPM O-ring, WD = FPM/Viton flat seal on screw-in side, Stainless steel: AISI 316 ti, Temperature range: -20°C to +200°C, When fitting stainless steel parts, grease the threads with ceramic, teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | 6L |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 28 g |
| Dimensions | 37 × 17 × 17 mm |
| Dangerous goods | No |
