£50.74
excl. VAT
£60.89 incl. VAT
£60.89
incl. VAT
£50.74 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Connection 1, type | Swivel nut |
|---|---|
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 40 mm |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 3, diameter | 1-1/4 Inch |
| Connection 3, type | Swivel nut |
| Connection 3, type - male/female | Female |
| Connection no 1 diameter | 40 mm |
| Height | 70 mm |
| Length | 130 mm |
| Long description | Connection fittings for creating reliable connections in pneumatic ring line systems. Ensures a secure, leak-free air distribution to workstations or equipment. |
| Material | Aluminium |
| Max working pressure | 16 BAR |
| Max working temperature | 80 °C |
| Min. working pressure | -0.98 BAR |
| Min. working temperature | -20 °C |
| Product details | Tee fittings with reducing connections, For pneumatic ring line systems, Double-seal lobe NBR, Body and nut : 100% aluminium, EN AB 46100, Toothed ring : Stainless steel X10CrNi18-22, No corrosion, no oxidation, Resistant to UV, impacts, fire, 100% reusable and modular, Pipe insertion depth mark, Pipe diameter indicated on fitting, ATEX, Suitable for : compressed air, nitrogen, vaccum, inert gases, Light weight, Recyclable |
| Shape | Tee (T) |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 623 g |
| Dimensions | 190 × 135 × 70 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000298543
Prevost Quick release safety coupling with 19mm hosetail ISG111819
£106.34 excl.
£127.61 incl.
In stock
Expected to ship on Monday 21 September
BPA000248006
Prevost Male connector with 8mm hosetail CRP086808
£20.14 excl.
£24.17 incl.
In stock
Expected to ship on Friday 18 September
BPA000298570

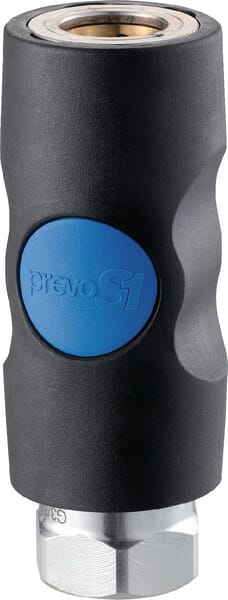

Prevost Quick release safety coupling 1/2" BSP female thread ISI081103
£71.17 excl.
£85.40 incl.
In stock
Expected to ship on Monday 21 September
BPA000298545

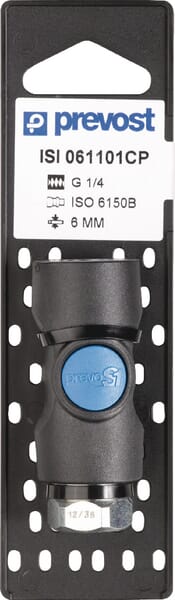

Prevost Quick release safety coupling 1/4" BSP female thread ISI061101P001
£45.34 excl.
£54.41 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000234210

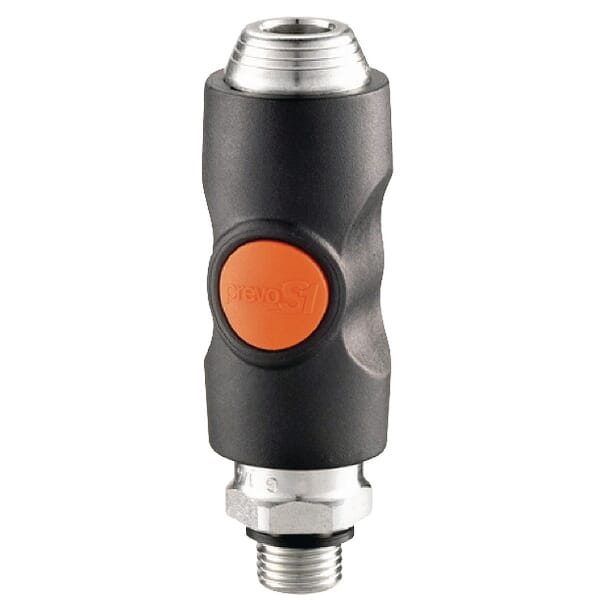

Prevost Quick release safety coupling 1/4" BSP male thread BSI061151
