£245.15
excl. VAT
£294.18 incl. VAT
£294.18
incl. VAT
£245.15 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

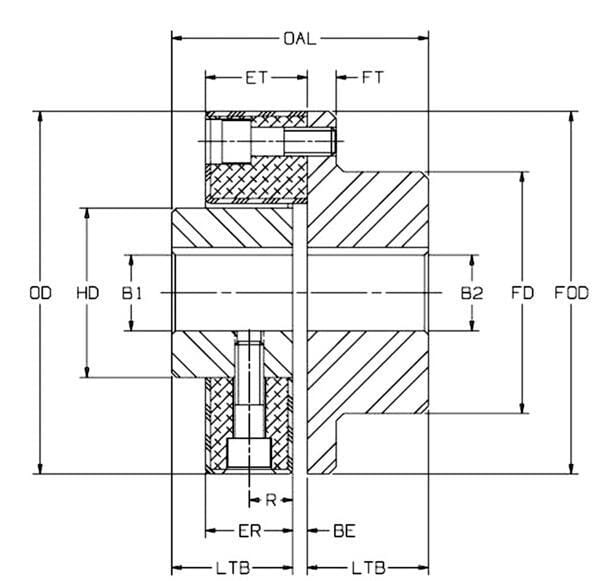

| Application range | Drives with combustion engines |
|---|---|
| BC (mm) | 140 mm |
| Benefits | Stronger vibration damping, More compact design |
| BEThickness BE | 6 mm |

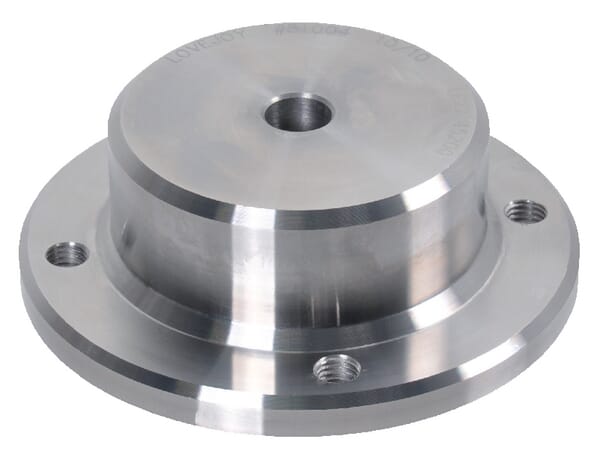

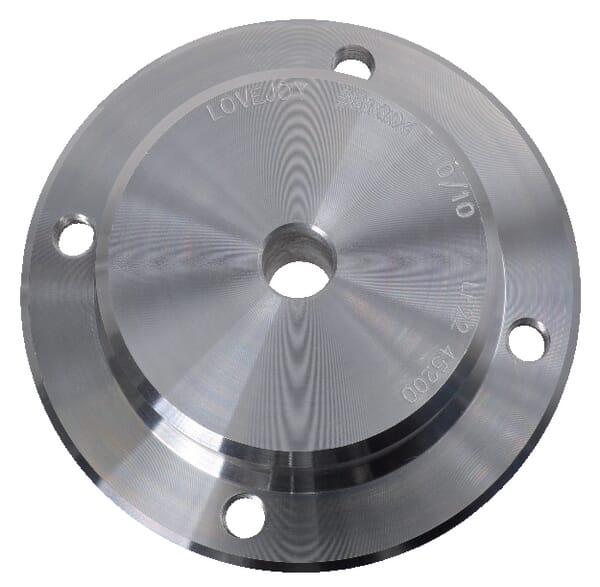

| Consists of | 1 flange hub |
| Coupling type | LF 28 |
| Details | Better functionality than star couplings, Minimal installation space |
| FDOutside diameter hub A | 15-55 mm |
| FODOutside diameter flange | 170 mm |
| HDOutside diameter hub B | 20-85 mm |
| LTBLength hub | 55 mm |
| Material | Steel |
| Max working torque | 1200 N·m |
| Nominal working torque | 420 kpm |
| OALOutside width | 116 mm |
| Properties | Not rupture-proof |
| Technical info | Hub bore, keyway and tapped hole are optional, Complete coupling consists of 1 hub, 1 flange hub and 1 flexible element |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5628 g |
| Dimensions | 170 × 169 × 63 mm |
| Dangerous goods | No |
