| Application |
Universal, Truck, Trailer, Construction vehicle
|
| Application range |
Attachment
|
| Authorisation number |
E9-01.1245, E9-00.1245, E9-02,1245
|
| Cable length |
1.5 m
|
| Details |
Test seal: E9 1245
|
| Diameter |
140 mm
|
| Function |
Tail light, Direction indicator, Position light, Stop light
|
| Height |
140 mm
|
| Insulation class |
68
|
| Length (depth) |
66 mm
|
| Light colour |
Red, Orange
|
| Long description |
Application:, Attachment, Details:, Test seal: E9 1245, Properties:, Rear light, brake light and indicator, 18 LEDs, Light lens: orange/red, Black housing, Without number plate light, Technical information:, Dimensions: 140mm in diameter, Connection:, Earth = clear, Brake light = red, Rear light = brown, Indicator = yellow
|
| Mounting position |
Rear, Left, Right
|
| Mounting thread diameter |
M6
|
| Mounting type |
Bolt on
|
| Nominal voltage |
12 V, 24 V
|
| Nominal voltage range |
12-24 V
|
| Plug type |
Bare wire ends
|
| Properties |
Rear light, brake light and indicator, 18 LEDs, Light lens: orange/red, Black housing, Without number plate light
|
| Shape |
Round
|
| Suitable for machine/vehicle brand |
Universal
|
| Technical info |

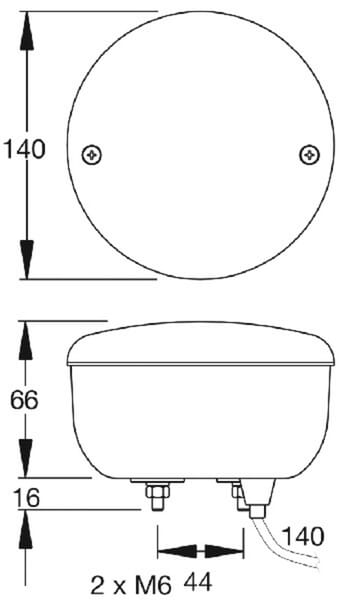

Dimensions: 140mm in diameter, Connection:, Earth = clear, Brake light = red, Rear light = brown, Indicator = yellow
|
| Technology |
LED
|
| Unit |
Each
|
| Width |
140 mm
|
