£161.77
excl. VAT
£194.12 incl. VAT
£194.12
incl. VAT
£161.77 excl. VAT
Free shipping
In stock
Expected to ship on Friday 25 September
Product details
| Application range | Axle-hub connection, V-pulley, Sprockets, Fan blade |
|---|---|
| Benefits | Short assembly time, Lower machining costs |

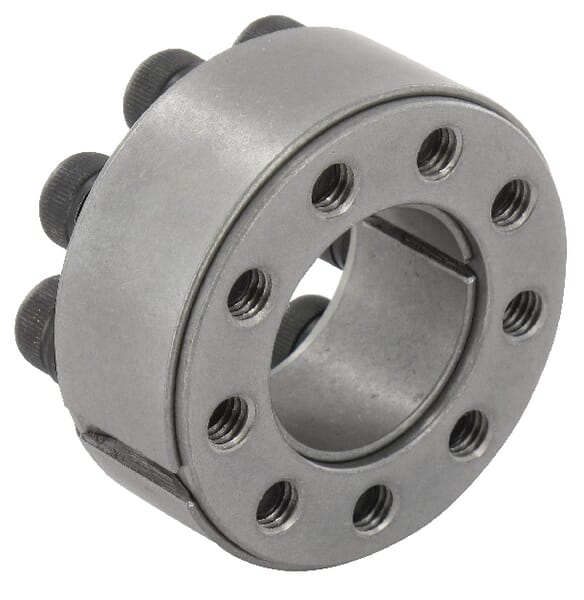

| Consists of | 2 conical half clamps, Outer ring, Inner ring, Pins |

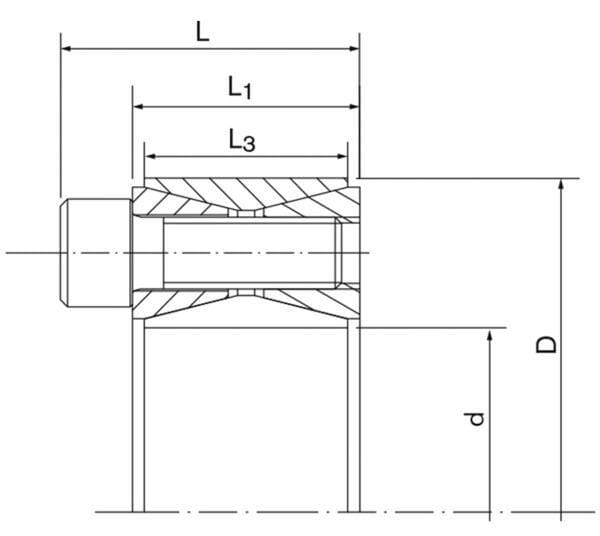

| dDiameter shaft max. | 35 mm |
| Details | Axle-hub connection without key, No axle weakening, Ideal at high speed, Simple assembly/dismantling, Precise centring |
| Dg (Clamping thread) | M6 x 18 |
| DOutside diameter | 60 mm |
| F ax (Transmissible axial force) | 47 kN |
| L1Length L1 | 20 mm |
| L3Length L3 | 17 mm |
| LLength | 27.5 mm |

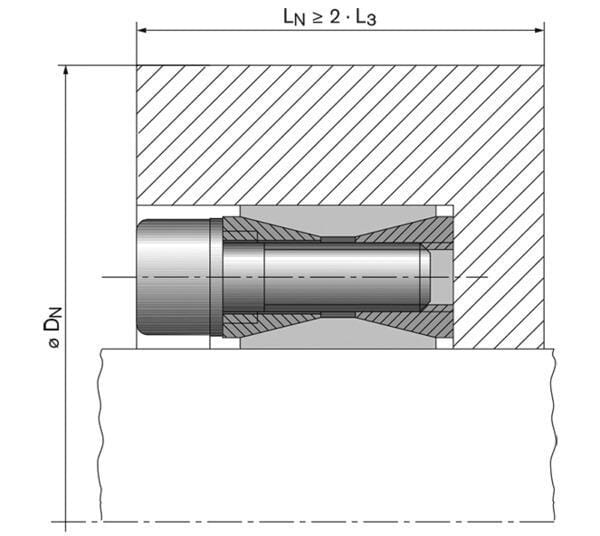

| Minimum required outside hub diameter at Rp0,2=200 N/mm² | 89 mm |
| Minimum required outside hub diameter at Rp0,2=300 N/mm² | 78 mm |
| Minimum required outside hub diameter at Rp0,2=400 N/mm² | 73 mm |
| Number of bolts | 12 |
| pN (Hub pressure at given TA) | 121 N/mm² |
| pW (Shaft pressure at given TA) | 208 N/mm² |
| TA (Locking torque) | 17 N·m |
| Technical info | Shaft tolerance between h8 and h9, Hub tolerance between h8 and h9, Material roughness < 3.2 µm, Material: steel C45E |
| Tmax (Maximum transmissible torque | 980 N·m |
| T (Transmissible tork at given TA) | 815 N·m |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 305 g |
| Dimensions | 82 × 71 × 50 mm |
| Dangerous goods | No |
