£14.36
excl. VAT
£17.23 incl. VAT
£17.23
incl. VAT
£14.36 excl. VAT
In stock
Expected to ship on Friday 25 September
Product details
| Benefits | Little space required for installation |
|---|---|

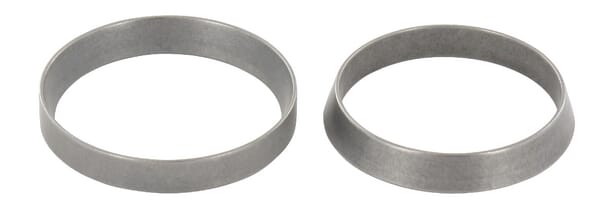

| Consists of | 2 conical rings |

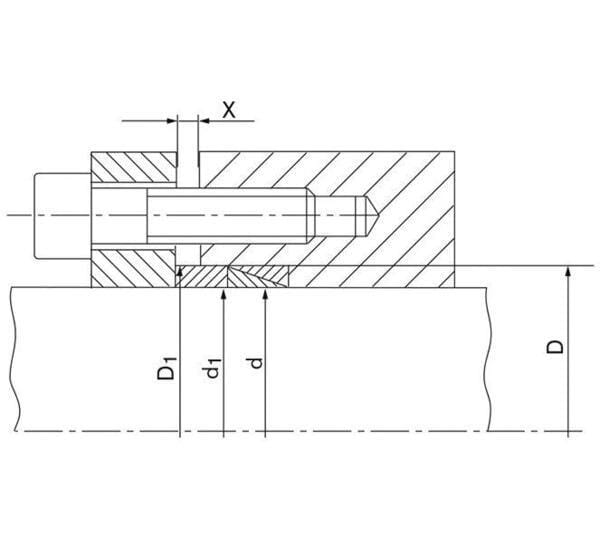

| d1Inside diameter | 14.1 mm |
| D1Outside diameter hub | 17.9 mm |
| dDiameter shaft max. | 14 mm |
| DOutside diameter | 18 mm |
| F ax (Transmissible axial force) | 2.8 kN |

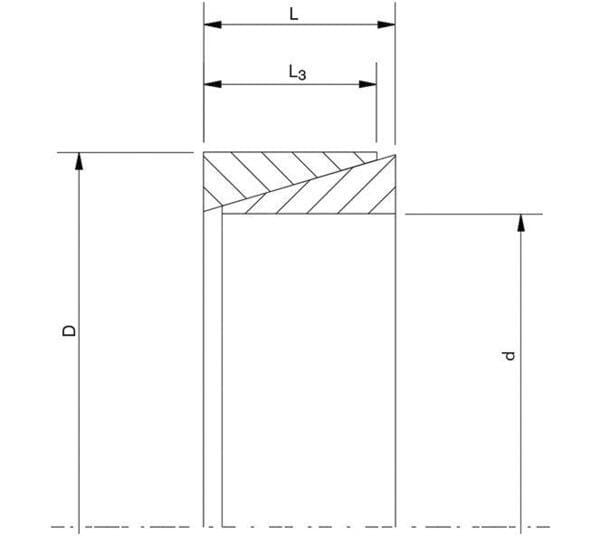

| L3Length L3 | 5.3 mm |
| LLength | 6.3 mm |
| Technical info | Shaft tolerance to 38 mm: h6, Shaft tolerance over 38 mm: h8, Hub tolerance to 38 mm: h6, Hub tolerance over 38 mm: h8, Material roughness < 1 µm, Material: steel C45E |
| T (Transmissible tork at given TA) | 20 N·m |
| Unit | Each |
| XDistance center flange end connection | 3 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5 g |
| Dimensions | 69 × 20 × 20 mm |
| Dangerous goods | No |
