£33.74
excl. VAT
£40.49 incl. VAT
£40.49
incl. VAT
£33.74 excl. VAT
In stock
Expected to ship on Friday 25 September
Product details

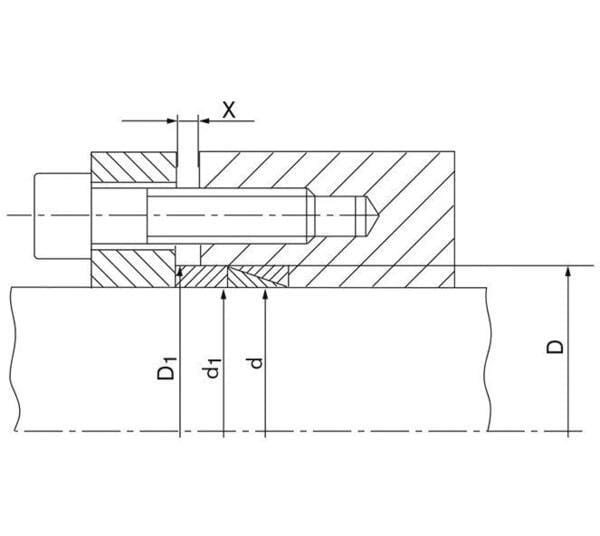

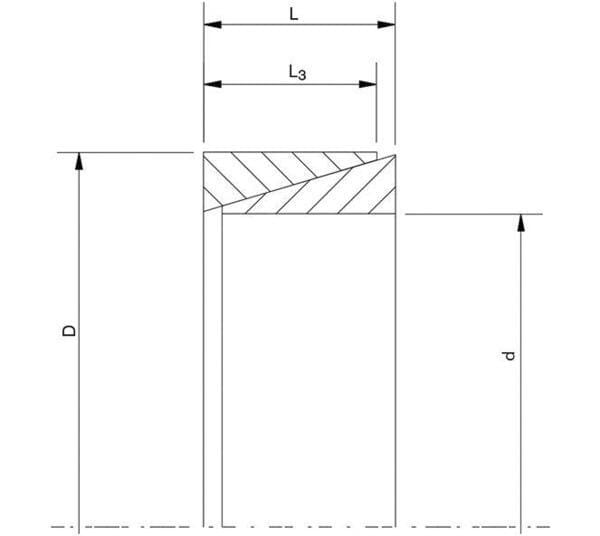

| Benefits | Little space required for installation |
|---|---|

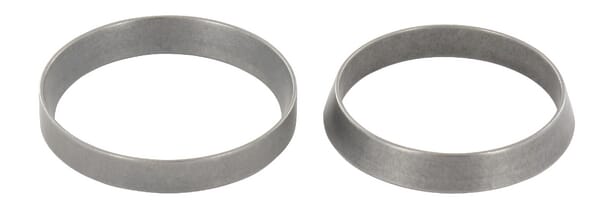

| Consists of | 2 conical rings |
| d1Inside diameter | 45.2 mm |
| D1Outside diameter hub | 51.8 mm |
| dDiameter shaft max. | 45 mm |
| DOutside diameter | 52 mm |
| F ax (Transmissible axial force) | 14.6 kN |
| L3Length L3 | 8.6 mm |
| LLength | 10 mm |
| Technical info | Shaft tolerance to 38 mm: h6, Shaft tolerance over 38 mm: h8, Hub tolerance to 38 mm: h6, Hub tolerance over 38 mm: h8, Material roughness < 1 µm, Material: steel C45E |
| T (Transmissible tork at given TA) | 328 N·m |
| Unit | Each |
| XDistance center flange end connection | 3 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 41 g |
| Dimensions | 52 × 52 × 11 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000345220
Ringfeder Locking element RFN8006120X134
£201.86 excl.
£242.23 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000345224
Ringfeder Locking element RFN800619X24
£15.09 excl.
£18.11 incl.
In stock
Expected to ship on Friday 25 September
BPA000345232

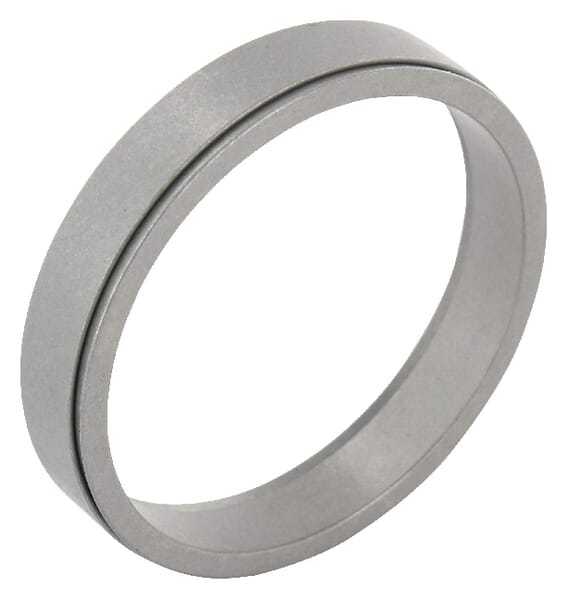

Ringfeder Locking element RFN800650X57
£31.11 excl.
£37.33 incl.
In stock
Expected to ship on Friday 25 September
BPA000345226
Ringfeder Locking element RFN800628X32
£18.17 excl.
£21.80 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000345219

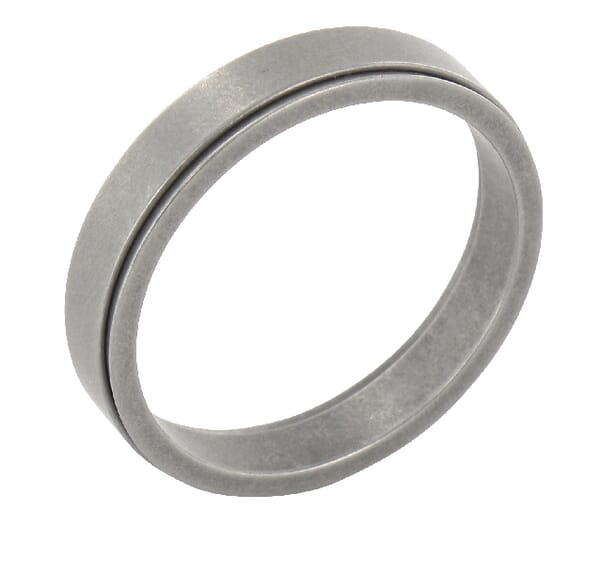

Ringfeder Locking element RFN800610X13
