£392.73
excl. VAT
£471.28 incl. VAT
£471.28
incl. VAT
£392.73 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Cabinet material thickness | 1.25 mm |
|---|---|
| Circuit integrity | None |
| Cover attachment | Snapped on |
| Depth | 120 mm |
| Explosion-tested version | No |
| Extension possible | No |
| For Ex-Zone dust | n/a |
| For Ex-Zone gas | n/a |
| Halogen free | No |
| Housing colour | Grey |
| Housing material | Stainless steel |
| Impact strength class code | IK08 |
| Includes | Enclosure with cover, Mini cam lock |
| Insulation class | 66 |
| Length | 200 mm |
| Long description | The compact KX enclosure, KX terminal box, with flange allows flexible internal expansion and simple cable routing with optimal space utilisation. |
| Manufacturer Product ID | 1565000 |
| Mounting method | Surface mounted |
| Operating temperature | -40-80 °C |
| Product details | Enclosure: Sheet steel, Cover: Sheet steel, all-round foamed-in PU seal |
| Protection class (NEMA) | 4X |
| Rated insulation voltage Ui | 2500 V |
| Sealable | No |
| Shape | Rectangular |
| Surface protection | None |
| Type of inlet | Gland nut |
| Unit | Box |
| Width | 200 mm |
| With cover/lid | No |
| With transparent cover | No |
Compatible accessories
Parts and components that work with this product.
1590010
Rittal Wall mounting bracket 1590010
£27.14 excl.
£32.57 incl.
2309000
Rittal Mounting clip 2309000
£85.30 excl.
£102.36 incl.
KX1562800
Rittal Mounting plate KX 175x185x2mm KX1562800
£13.36 excl.
£16.03 incl.
KX1592220
Rittal Cover hinges KX1592220
£19.61 excl.
£23.53 incl.
SZ2315000

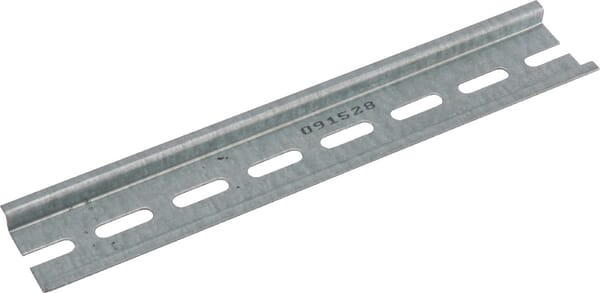

Rittal SZ Rails NS35/7,5 L=187 P010 SZ2315000
£64.11 excl.
£76.94 incl.
SZ2459500
Rittal SZ Plugs M12x1.5 P005 SZ2459500
£46.80 excl.
£56.16 incl.
Logistics
| EAN | 4028177919068 |
|---|---|
| Unit of measure | BOX |
| Weight | 2111 g |
| Dimensions | 210 × 205 × 130 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000233455

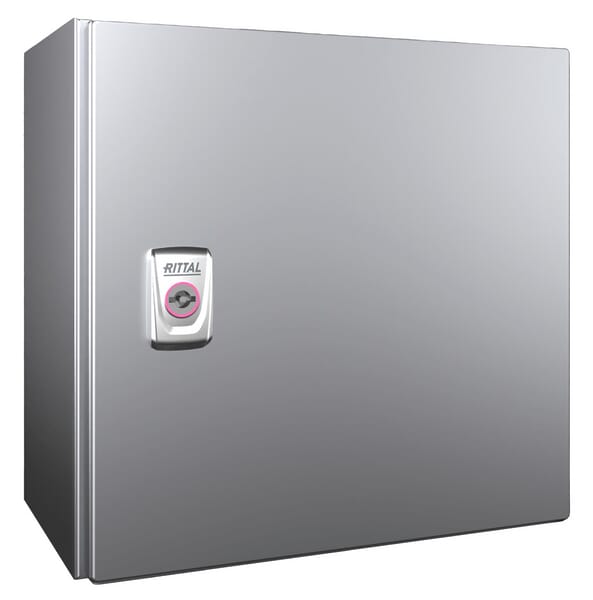

Rittal Enclosure AX1003000
£505.14 excl.
£606.17 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000233481
Rittal Enclosure AX1180000
£521.87 excl.
£626.24 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000367059

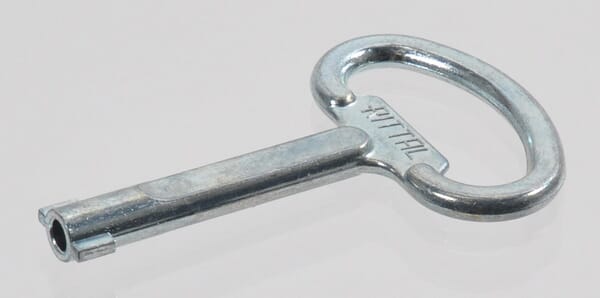

Rittal Cabinet key Rittal nr.5 SZ2531000
£8.96 excl.
£10.75 incl.
In stock
Expected to ship on Monday 21 September
BPA000367058

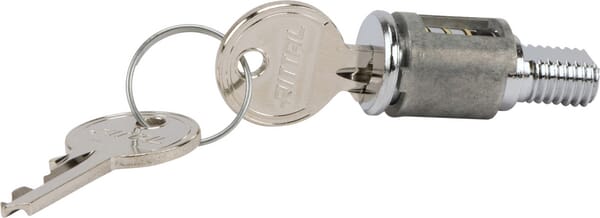

Rittal Safety cylinder lock SZ2525
£24.12 excl.
£28.94 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000305497

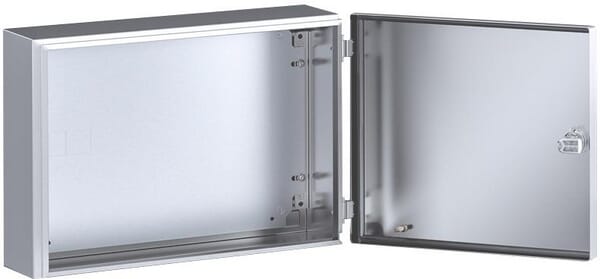

Rittal Enclosure KX1587000
