£86.21
excl. VAT
£103.45 incl. VAT
£103.45
incl. VAT
£86.21 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Cabinet material thickness | 1.25 mm |
|---|---|
| Circuit integrity | None |
| Cover attachment | Snapped on |
| Depth | 80 mm |
| Explosion-tested version | No |
| Extension possible | No |
| For Ex-Zone dust | n/a |
| For Ex-Zone gas | n/a |
| Halogen free | No |
| Housing colour | Grey |
| Housing material | Steel |
| Impact strength class code | IK08 |
| Includes | Enclosure with cover, Mini cam lock |
| Insulation class | 66 |
| Length | 200 mm |

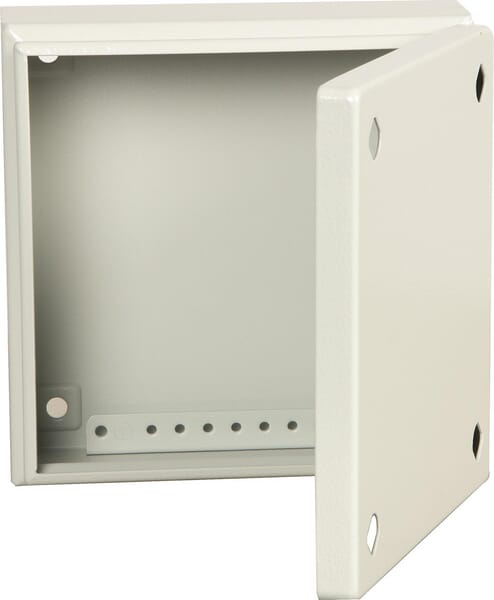

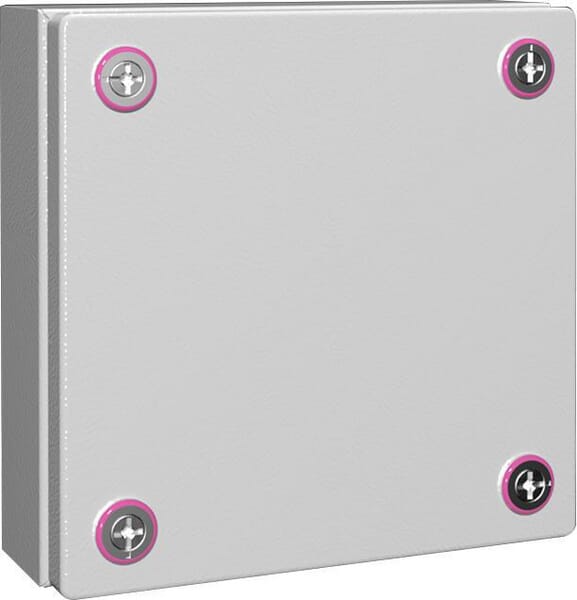

| Long description | The compact KX enclosure, KX terminal box, with flange allows flexible internal expansion and simple cable routing with optimal space utilisation. |
| Manufacturer Product ID | 1516000 |
| Mounting method | Surface mounted |
| Operating temperature | -40-80 °C |
| Product details | Enclosure: Sheet steel, Cover: Sheet steel, all-round foamed-in PU seal |
| Protection class (NEMA) | 12 |
| Rated insulation voltage Ui | 2500 V |
| Sealable | No |
| Shape | Square |
| Type of inlet | Gland nut |
| Unit | Box |
| Width | 200 mm |
| With cover/lid | No |
| With transparent cover | No |
Compatible accessories
Parts and components that work with this product.
1590010
Rittal Wall mounting bracket 1590010
£27.14 excl.
£32.57 incl.
2309000
Rittal Mounting clip 2309000
£85.30 excl.
£102.36 incl.
KX1562800
Rittal Mounting plate KX 175x185x2mm KX1562800
£13.36 excl.
£16.03 incl.
KX1592220
Rittal Cover hinges KX1592220
£19.61 excl.
£23.53 incl.
SZ2315000

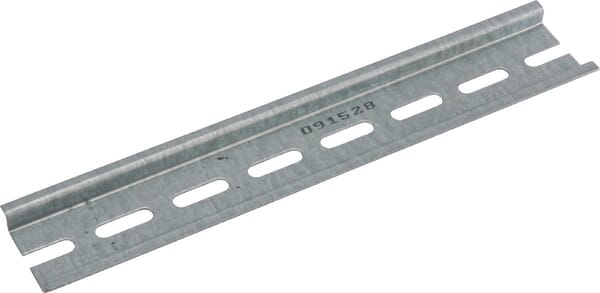

Rittal SZ Rails NS35/7,5 L=187 P010 SZ2315000
£64.11 excl.
£76.94 incl.
SZ2459500
Rittal SZ Plugs M12x1.5 P005 SZ2459500
£46.80 excl.
£56.16 incl.
SZ2565100
Rittal SZ Earth straps 10mm² M6-M6-200 P005 SZ2565100
£48.73 excl.
£58.47 incl.
Logistics
| EAN | 4028177816305 |
|---|---|
| Unit of measure | BOX |
| Weight | 1789 g |
| Dimensions | 215 × 215 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000305452

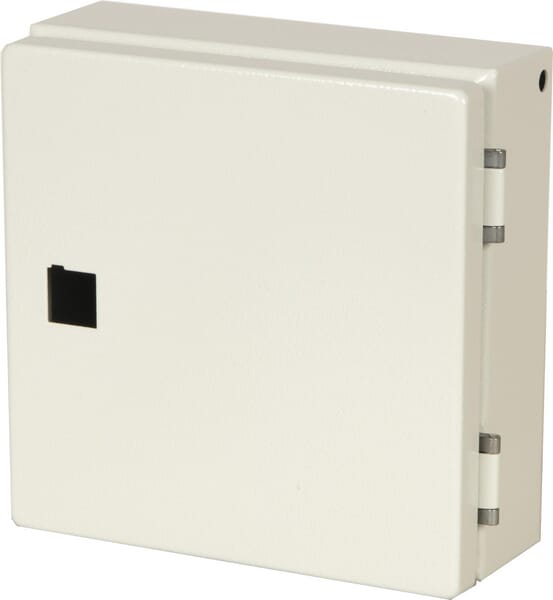

Rittal Enclosure KX1546000
£127.96 excl.
£153.55 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000072984
Rittal SZ lock insert 2460000
£7.60 excl.
£9.12 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000362950

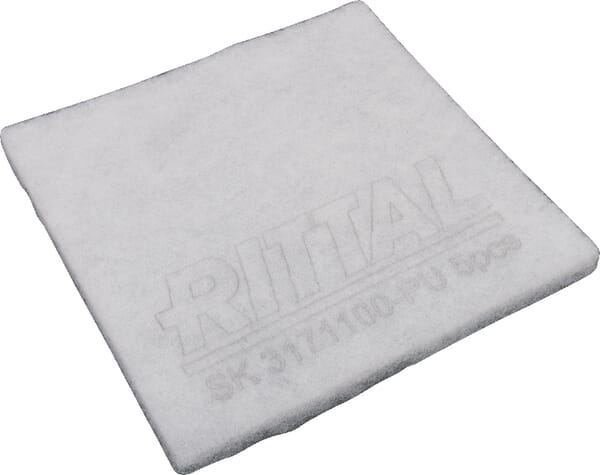

Rittal SK Filtermats P005 SK3171100
£33.42 excl.
£40.10 incl.
In stock
Expected to ship on Friday 18 September

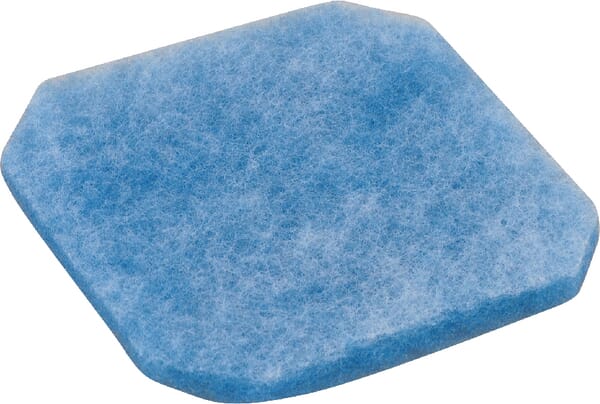

BPA000362960
Rittal SK Filtermats P005 SK3321700
£20.92 excl.
£25.11 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000233527

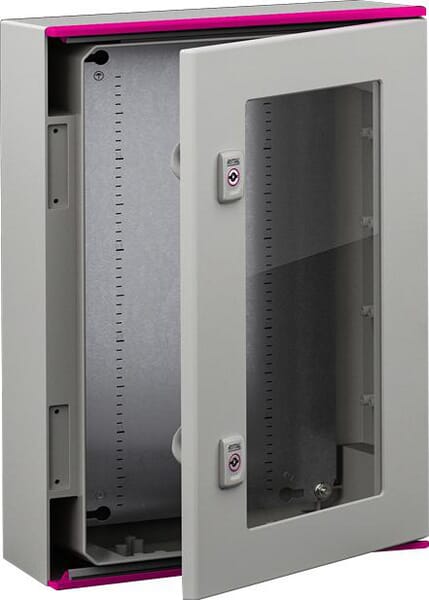

Rittal Enclosure AX 400x400x200mm Plastic AX1448000
£516.11 excl.
£619.33 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000233460

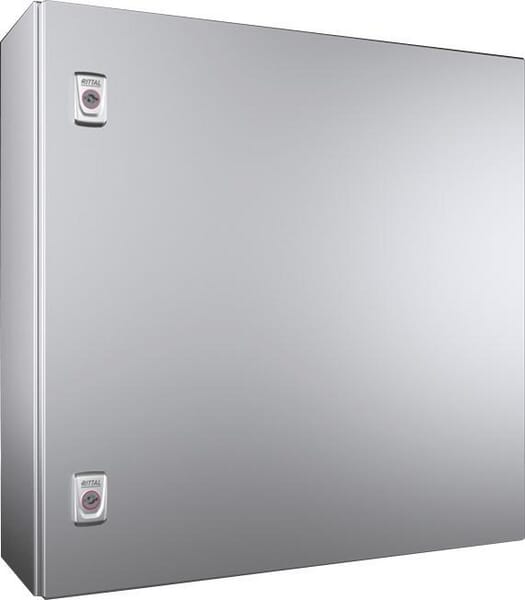

Rittal Enclosure AX1010000
