£91.94
excl. VAT
£110.33 incl. VAT
£110.33
incl. VAT
£91.94 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Cabinet material thickness | 1.25 mm |
|---|---|
| Circuit integrity | None |
| Cover attachment | Snapped on |
| Depth | 120 mm |
| Explosion-tested version | No |
| Extension possible | No |
| For Ex-Zone dust | n/a |
| For Ex-Zone gas | n/a |
| Halogen free | No |
| Housing colour | Grey |
| Housing material | Steel |
| Impact strength class code | IK08 |
| Includes | Enclosure with cover, Mini cam lock |
| Insulation class | 66 |
| Length | 400 mm |
| Long description | The compact KX enclosure, KX terminal box, with flange allows flexible internal expansion and simple cable routing with optimal space utilisation. |
| Manufacturer Product ID | 1504000 |
| Mounting method | Surface mounted |
| Operating temperature | -40-80 °C |
| Product details | Enclosure: Sheet steel, Cover: Sheet steel, all-round foamed-in PU seal |
| Protection class (NEMA) | 12 |
| Rated insulation voltage Ui | 2500 V |
| Sealable | No |
| Shape | Rectangular |
| Type of inlet | Gland nut |
| Unit | Box |
| Width | 200 mm |
| With cover/lid | No |
| With transparent cover | No |
Logistics
| EAN | 4028177816183 |
|---|---|
| Unit of measure | BOX |
| Weight | 3522 g |
| Dimensions | 410 × 200 × 130 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000305443
Rittal Terminal box KX 200mm x 400mm x 120mm Steel KX1532000
£145.50 excl.
£174.60 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000233469
Rittal Enclosure AX1039000
£298.45 excl.
£358.14 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000305496
Rittal Enclosure KX1586000
£626.92 excl.
£752.30 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000367053
Rittal SZ Rails NS35/7,5 L=387 P010 SZ2317000
£92.01 excl.
£110.41 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000305479

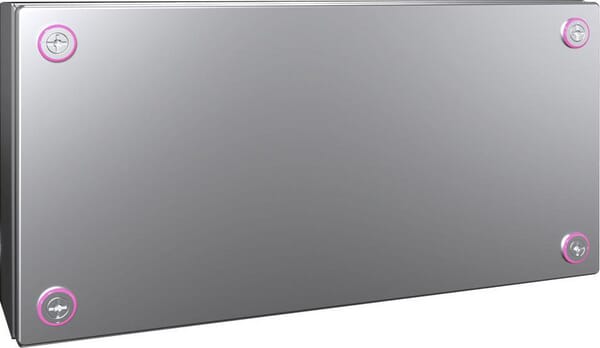

Rittal Terminal box KX 200mm x 400mm x 120mm Stainless steel KX1568000
