£173.25
excl. VAT
£207.90 incl. VAT
£207.90
incl. VAT
£173.25 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Cabinet material thickness | 1.25 mm |
|---|---|
| Circuit integrity | None |
| Cover attachment | Snapped on |
| Depth | 120 mm |
| Explosion-tested version | No |
| Extension possible | No |
| For Ex-Zone dust | n/a |
| For Ex-Zone gas | n/a |
| Halogen free | No |
| Housing colour | Grey |
| Housing material | Steel |
| Impact strength class code | IK08 |
| Includes | Enclosure with cover, Mini cam lock |
| Insulation class | 66 |
| Length | 600 mm |
| Long description | The compact KX enclosure, KX terminal box, with flange allows flexible internal expansion and simple cable routing with optimal space utilisation. |
| Manufacturer Product ID | 1510000 |
| Mounting method | Surface mounted |
| Operating temperature | -40-80 °C |
| Product details | Enclosure: Sheet steel, Cover: Sheet steel, all-round foamed-in PU seal |
| Protection class (NEMA) | 12 |
| Rated insulation voltage Ui | 2500 V |
| Sealable | No |
| Shape | Rectangular |
| Type of inlet | Gland nut |
| Unit | Box |
| Width | 300 mm |
| With cover/lid | No |
| With transparent cover | No |
Logistics
| EAN | 4028177816244 |
|---|---|
| Unit of measure | BOX |
| Weight | 6570 g |
| Dimensions | 605 × 310 × 130 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000305447
Rittal Terminal box KX 300mm x 600mm x 120mm Steel KX1538000
£216.09 excl.
£259.31 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000233513
Rittal Enclosure AX1380000
£223.76 excl.
£268.51 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000305496

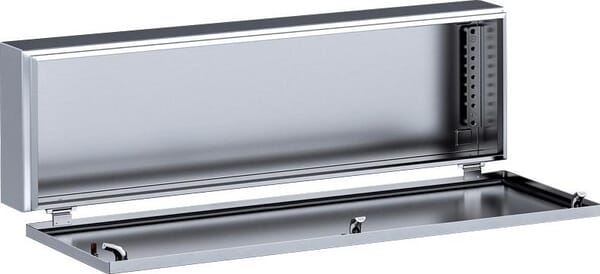

Rittal Enclosure KX1586000
£626.92 excl.
£752.30 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000367074
Rittal SZ Half Profile Cylinders P002 SZ9785042
£109.60 excl.
£131.52 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000233501

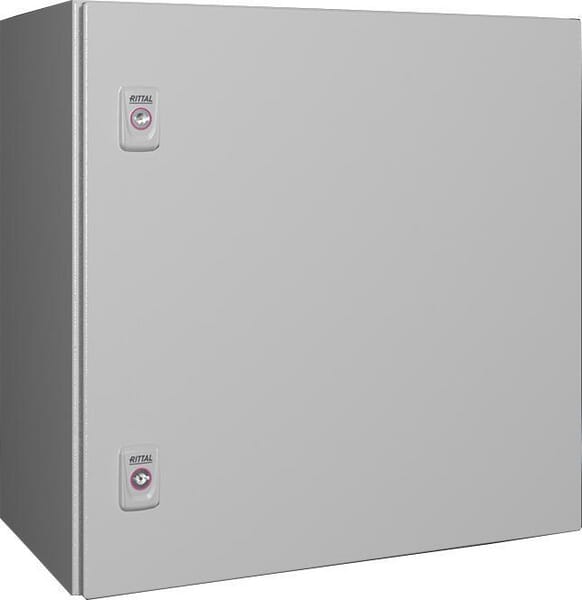

Rittal Enclosure AX1350000
£434.02 excl.
£520.82 incl.
In stock
Expected to ship on Monday 21 September
BPA000069807

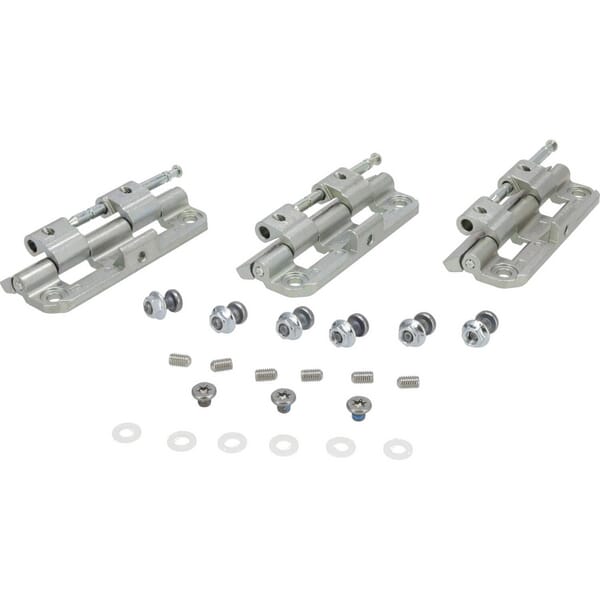

Rittal AX Hinges P003 2449010
