£86.43
excl. VAT
£103.72 incl. VAT
£103.72
incl. VAT
£86.43 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Ball material | Brass CW617N-UNIEN12165 |
|---|---|
| Connection 2, thread diameter | 1-1/2 Inch |
| Connection 2, type - male/female | Female |
| Connection thread diameter | 1-1/2 Inch |
| Connection type | Thread |
| Connection type - male/female | Female |

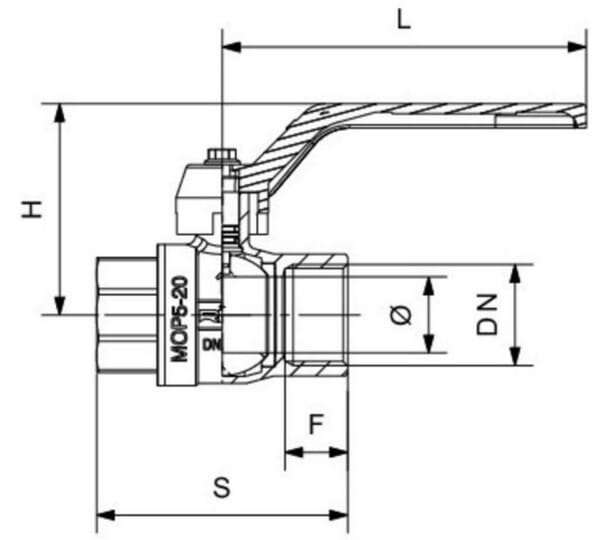

| FConnection 2, thread length | 24 mm |
| HCenter bore to top distance | 93 mm |
| Housing material | Brass CW617N-UNIEN12165 |
| Housing surface treatment | Nickel-plated |
| LHandle length | 160 mm |
| Max working pressure | 40 BAR |
| Max working temperature | 120 °C |
| Min working temperature | -10 °C |
| Number of ports | 2 |
| Number of positions | 2 |
| ØNominal inner diameter | 40 mm |
| Product details | This heavy duty ball valve range features a full bore design, ensuring an unobstructed flow path without any narrowing, maximizing efficiency and minimizing pressure loss, Material: Housing: brass CW617N, nickel-plated, Spindle: brass CW614N, O-rings NBR + FKM, Ball: brass, chrome-plated, with PTFE seal rings, Lever: aluminium, The maximum working pressure (PN) means at a room temperature of about 23°C, Operating temperature: -20°C (without liquid) +150°C |
| STotal length | 102 mm |
| Type | Heavy |
| Unit | Each |
Logistics
| EAN | 8017685000074 |
|---|---|
| Unit of measure | EA |
| Weight | 1123 g |
| Dimensions | 196 × 129 × 71 mm |
| Dangerous goods | No |
You might also like
BPA000349353
Riv O-ring for flange 4" RIV9859100
£3.49 excl.
£4.19 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000349310
Riv Overflow valve ø80 ACQUA MARINA RIV41080
£142.71 excl.
£171.25 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000349315
Riv Overflow valve ø100 GOLD RIV415100
£246.12 excl.
£295.34 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000349316
Riv Flanged tube level indicator 100x1500mm RIV5581500
£425.51 excl.
£510.61 incl.
In stock
Expected to ship on Thursday 24 September
BPA000349363

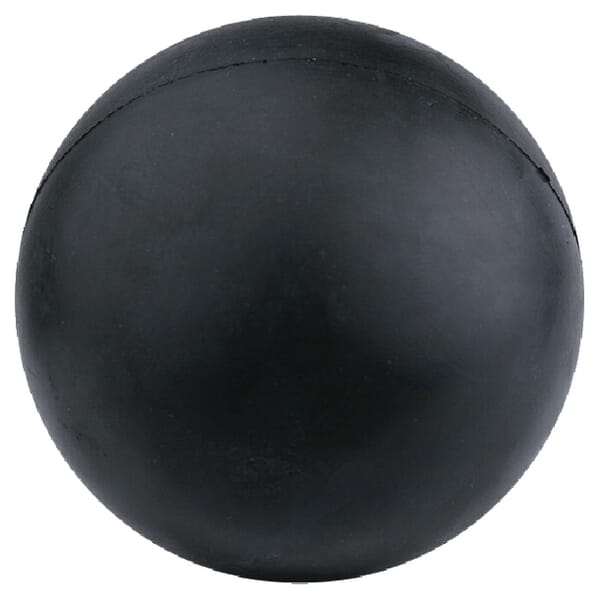

Riv Rubber float ball 60mm RIV9912060
