£138.75
excl. VAT
£166.50 incl. VAT
£166.50
incl. VAT
£138.75 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details

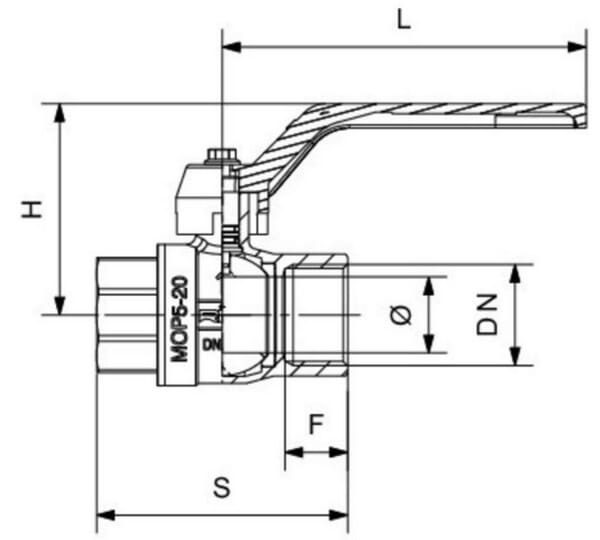

| Ball material | Brass CW617N-UNIEN12165 |
|---|---|
| Connection 2, thread diameter | 2 Inch |
| Connection 2, type - male/female | Female |
| Connection thread diameter | 2 Inch |
| Connection type | Thread |
| Connection type - male/female | Female |
| FConnection 2, thread length | 28 mm |
| HCenter bore to top distance | 102 mm |
| Housing material | Brass CW617N-UNIEN12165 |
| Housing surface treatment | Nickel-plated |
| LHandle length | 160 mm |
| Max working pressure | 40 BAR |
| Max working temperature | 120 °C |
| Min working temperature | -10 °C |
| Number of ports | 2 |
| Number of positions | 2 |
| ØNominal inner diameter | 50 mm |
| Product details | This heavy duty ball valve range features a full bore design, ensuring an unobstructed flow path without any narrowing, maximizing efficiency and minimizing pressure loss, Material: Housing: brass CW617N, nickel-plated, Spindle: brass CW614N, O-rings NBR + FKM, Ball: brass, chrome-plated, with PTFE seal rings, Lever: aluminium, The maximum working pressure (PN) means at a room temperature of about 23°C, Operating temperature: -20°C (without liquid) +150°C |
| STotal length | 124 mm |
| Type | Heavy |
| Unit | Each |
Logistics
| EAN | 8017685000081 |
|---|---|
| Unit of measure | EA |
| Weight | 1702 g |
| Dimensions | 233 × 154 × 86 mm |
| Dangerous goods | No |
You might also like
BPA000349292
Riv Double-acting hydraulic actuator 4"-6" SMERALDO RIV163456
£94.38 excl.
£113.25 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000349344
Riv Seal gasket 4'' RIV9847100
£12.86 excl.
£15.43 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000349308
Riv Three-way flanged valve 8" NERONE RIV201200
£1,188.55 excl.
£1,426.26 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000349353

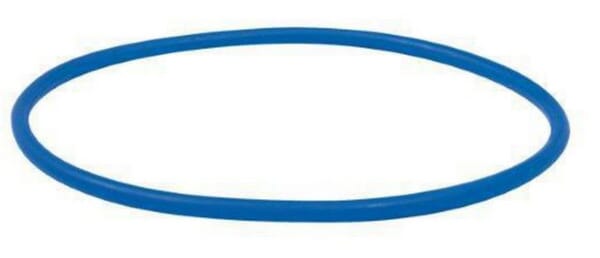

Riv O-ring for flange 4" RIV9859100
