£186.94
excl. VAT
£224.33 incl. VAT
£224.33
incl. VAT
£186.94 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

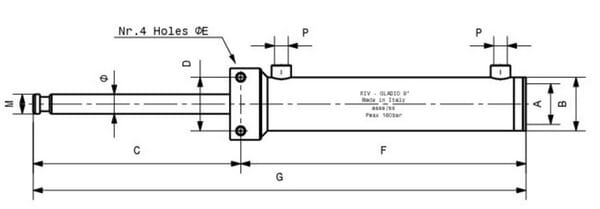

Product details
| Application | Slurry tank |
|---|---|
| Cylinder length without rod | 224 mm |
| Max. length | 356 mm |
| Max. working pressure | 250 BAR |
| Min. length | 224 mm |
| Mounting diameter (width) - cylinder connection | 60 mm |
| Mounting diameter (width) - rod connection | 20 mm |
| Mounting thread diameter - rod connection | 1/4 Inch |
| Mounting type - cylinder side connection | No mounting |
| Mounting type - rod side connection | Flange |
| Outside diameter | 50 mm |
| Rod diameter | 22 mm |
| Rod surface treatment | Zinc-plated |
| Stroke | 132 mm |
| Type | Double acting |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
BPA000349328
Riv Gate valve cap for 6" valve PERLA RIV9822150
£72.84 excl.
£87.41 incl.
In stock
Expected to ship on Thursday 24 September
BPA000349350
Riv Spindle fork for PERLA gate valve RIV9854
£8.98 excl.
£10.78 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000349296
Riv Pneumatic cylinder 4" with sensors double-acting RIV165100
£528.00 excl.
£633.60 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000349299
Riv Single-acting hydraulic actuator 4" SMERALDO RIV166100
£227.13 excl.
£272.55 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000349339

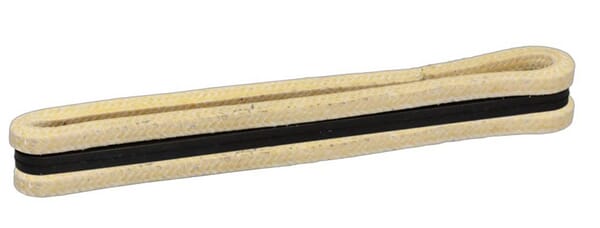

Riv Blade seal kit 8" RIV9836200
