£436.47
excl. VAT
£523.76 incl. VAT
£523.76
incl. VAT
£436.47 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

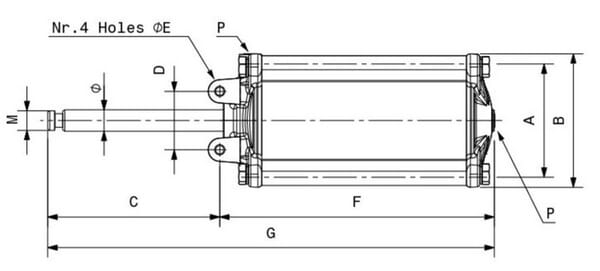

Product details
| Bore diameter | 203.2 mm |
|---|---|
| Cylinder length without rod | 331.5 mm |
| Damping type | n/a |
| Housing side mounting holes distance | 60 mm |
| Magnetic | No |
| Max. working pressure | 10 BAR |
| Max. working temperature | +60 °C |
| Min. length | 331.5 mm |
| Min. working pressure | 6 BAR |
| Min. working temperature | 0 °C |
| Mounting diameter (width) - cylinder connection | 22 mm |
| Mounting thread diameter - cylinder connection | 1/4 Inch |
| Mounting type - cylinder side connection | n/a |
| Rod diameter | 22 mm |
| Series | RIV164 |
| Stroke | 232.5 mm |
| Type | Double acting |
| Unit | Each |
| Weight | 6.1 kg |
| Width | 137 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
