£246.00
excl. VAT
£295.21 incl. VAT
£295.21
incl. VAT
£246.00 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

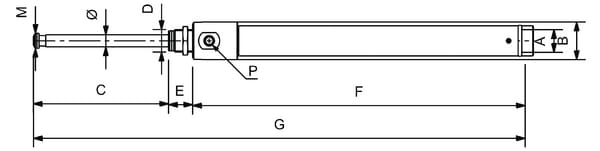

| AMounting hole diameter - cylinder connection | 30 mm |
|---|---|
| Application | Slurry tank |
| BOutside diameter | 50 mm |
| CStroke | 246 mm |
| DOutside diameter | 8 Inch |
| EOil connection length | 32 mm |
| FCylinder length without rod | 542 mm |
| GMax. length | 821 mm |
| Max. working pressure | 170 BAR |
| Min. length | 575 mm |
| Mounting diameter (width) - cylinder connection | 32 mm |
| Mounting diameter (width) - rod connection | 35 mm |
| Mounting thread diameter - cylinder connection | M35 |
| Mounting thread diameter - rod connection | 1/4 Inch |
| Mounting thread pitch - cylinder connection | 2.00 mm |
| Mounting type - cylinder side connection | No mounting |
| Mounting type - rod side connection | Clevis |
| Rod diameter | 16 mm |
| Rod surface treatment | Zinc-plated |
| Type | Single acting |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4200 g |
| Dimensions | 820 × 55 × 55 mm |
| Dangerous goods | No |
