£17.07
excl. VAT
£20.48 incl. VAT
£20.48
incl. VAT
£17.07 excl. VAT
In stock
Expected to ship on Tuesday 22 September
About this product
A rubber swivel caster wheel with a 125 mm diameter and 37.5 mm width, supplied as a single unit. The wheel is mounted on a steel plate fitting measuring 115 mm length by 85 mm width, with mounting holes spaced 60 mm apart on the width side and 80 mm apart on the length side. The caster features a roller bearing and supports a dynamic load capacity of 130 kg. Total height is 153 mm with an offset of 36 mm. Operating temperature range is −20 °C to +60 °C. The assembly weighs 1,428 g and measures 182 mm long by 155 mm wide by 85 mm high in its shipping dimensions. EAN 8016931002633.
Product details
| Bearing type | Roller |
|---|---|
| Body material | Steel |
| Dynamic load capacity | 130 kg |
| Fitting type | Plate fitting |
| Max working temperature | +60 °C |
| Min working temperature | -20 °C |
| Mounting holes distance | 60-60 mm |
| Mounting holes distance - length side | 80-80 mm |
| Offset | 36 mm |
| Plate length | 115 mm |
| Plate width | 85 mm |
| Total height | 153 mm |
| Unit | Each |
| Wheel diameter | 125 mm |
| Wheel material | Rubber |
| Wheels type | Swivel wheel |
| Wheel width | 37.5 mm |
| With break | No |
Logistics
| EAN | 8016931002633 |
|---|---|
| Unit of measure | EA |
| Weight | 1428 g |
| Dimensions | 182 × 155 × 85 mm |
| Dangerous goods | No |
You might also like
BPA000398828
Ro-Carr Caster wheel with bearing 200 mm WH840200
£67.15 excl.
£80.58 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

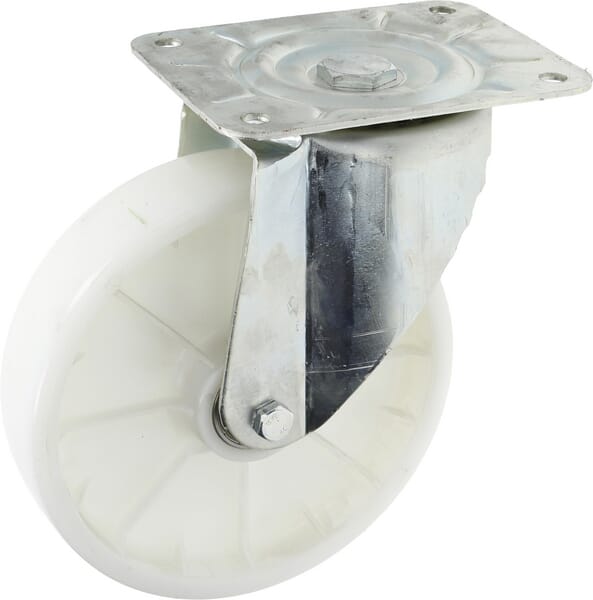

BPA000398524
Ro-Carr Caster wheel swivel, polyamide wheel: diameter 250x60mm, plate fitting: 200x160mm Load: 400kg, WH50NK250
£121.86 excl.
£146.23 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000398453
Ro-Carr Pallet wheel 82x 90 WH200NP8290
£24.32 excl.
£29.18 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000398516
Ro-Carr Caster wheel swivel, polyamide wheel: diameter 100x35mm, plate fitting: 100x80mm Load: 110kg, WH50NK100
£26.72 excl.
£32.06 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

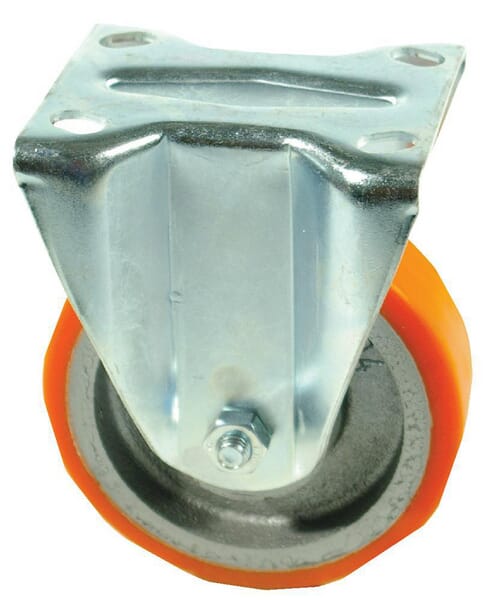

BPA000398733
