£863.21
excl. VAT
£1,035.85 incl. VAT
£1,035.85
incl. VAT
£863.21 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

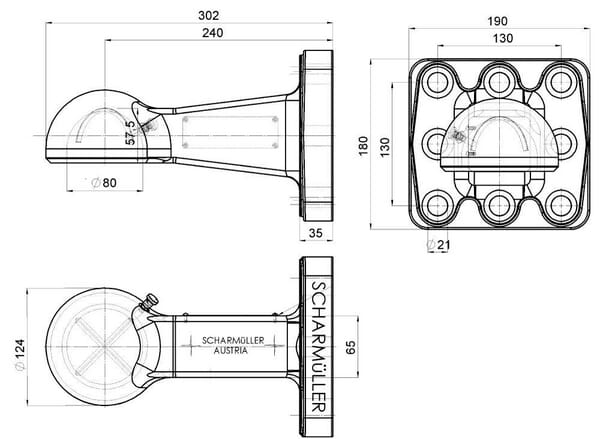

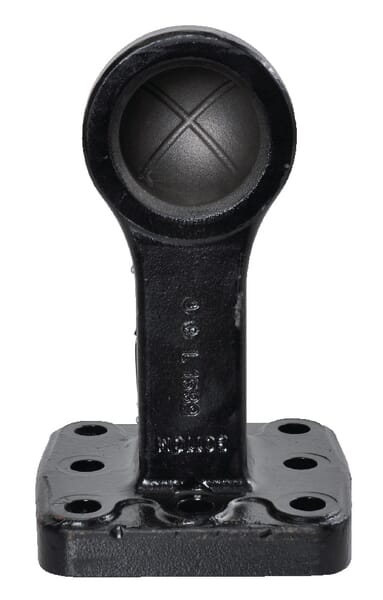

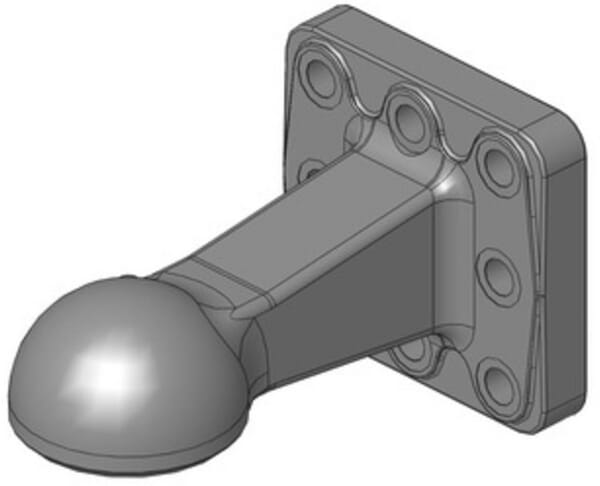

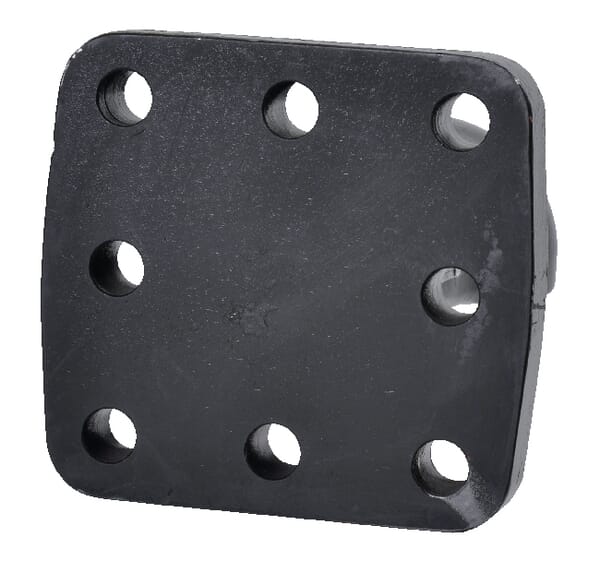

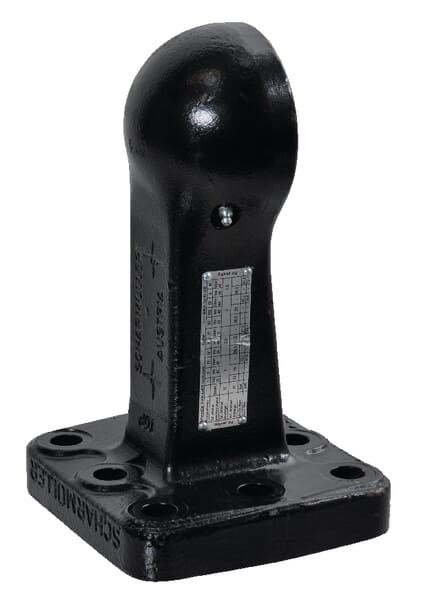

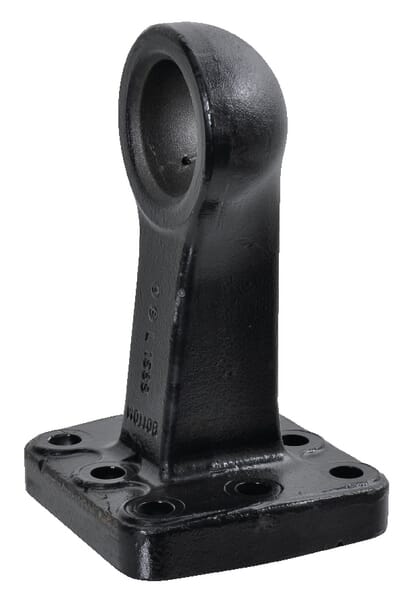

| Application range | Mainly for use on heavy agricultural and forestry rigid axle drawbar trailers., For connection to 80mm coupling ball |
|---|---|
| Colour | Black |
| DC value | 120.2 kN |
| Details | K80 creates a clearance free connection, Less wear |
| Max. mounting holes distance | 130 mm |
| Max. vertical load | 4000 kg |
| Min. mounting holes distance | 130 mm |
| Mounting holes number | 8 |
| Properties | Weight: ±19 kg, Tested to ISO 24347 |
| Thread diameter | M20 |
| Total length | 240 mm |
| Total width | 190 mm |
| Towing eye inside diameter (main hole) | 80 mm |
| Unit | Each |
| Working length | 240 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 17585 g |
| Dimensions | 310 × 190 × 185 mm |
| Dangerous goods | No |
