£107.38
excl. VAT
£128.86 incl. VAT
£128.86
incl. VAT
£107.38 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Ambient temperature, upper operating limit | 40 °C |
|---|---|
| Depth | 120 mm |
| External reset possible | Yes |
| Height | 166 mm |
| Includes | Includes LC1D contactor |
| Insulation class | 65 |

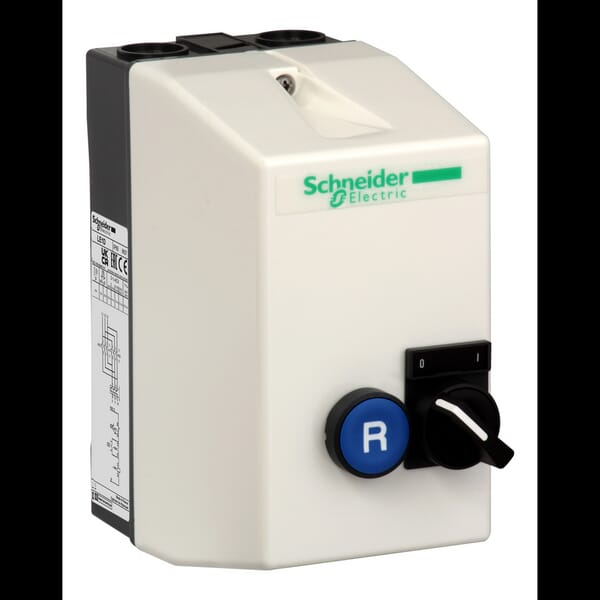

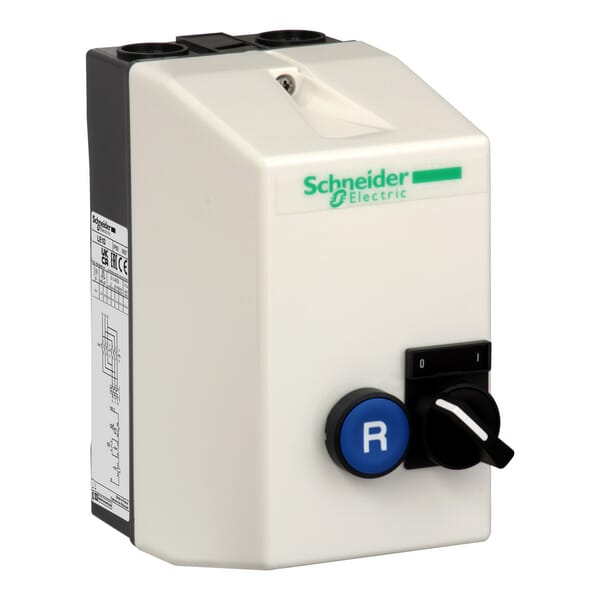

| Long description | Motor starter 3-pole for non-reversible motor applications up to 4kW@400V AC-3., Polycarbonate housing with IP65 / IK07 protection., Equipped with 1 push button and 2-position selector switch., Without a motor protection relay (LRD...) you have to select it according to the requested motor current., Mainly used for motor drives of workshop machines, large fans, water pumps and similar machines. |
| Manufacturer Product ID | LE1D09P7A13 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of command positions | 2 |
| Number of indicator lights | 0 |
| Product details | Push button reset blue R, Selector switch 2 positions start/stop O-I, An overload relay can be ordered separately, Overload relay LRD06 - LRD14 depending on motor power |
| Rail mounting possible | No |
| Rated control supply voltage Us at AC 50HZ | 230.0-230.0 V |
| Rated control supply voltage Us at AC 60HZ | 230-230 V |
| Rated control supply voltage Us at DC | 230.0-230.0 V |
| Rated operation current at AC-3, 400 V | 9 A |
| Rated operation current Ie | 9 A |
| Rated operation power at AC-3, 230 V, 3-phase | 2.2 kW |
| Rated operation power at AC-3, 400 V | 4 kW |
| Rated power, 460 V, 60 Hz, 3-phase | 4 kW |
| Rated power, 575 V, 60 Hz, 3-phase | 5.5 kW |
| Suitable for emergency stop | No |
| Supporting protocol for ASI | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for CAN | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for LON | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for other bus systems | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for TCP/IP | No |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Direct online starter (DOL) |
| Unit | Each |
| Voltage type for actuating | AC |
| Width | 88 mm |
| With fuse | No |
| With short-circuit release | No |
| With transformer | No |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 3389110541304 |
|---|---|
| Unit of measure | EA |
| Weight | 892 g |
| Dimensions | 210 × 170 × 150 mm |
| Dangerous goods | No |
You might also like
BPA000310677
Schneider-Electric Overload cut out 2.5-4A LRD08
£79.00 excl.
£94.80 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000309988

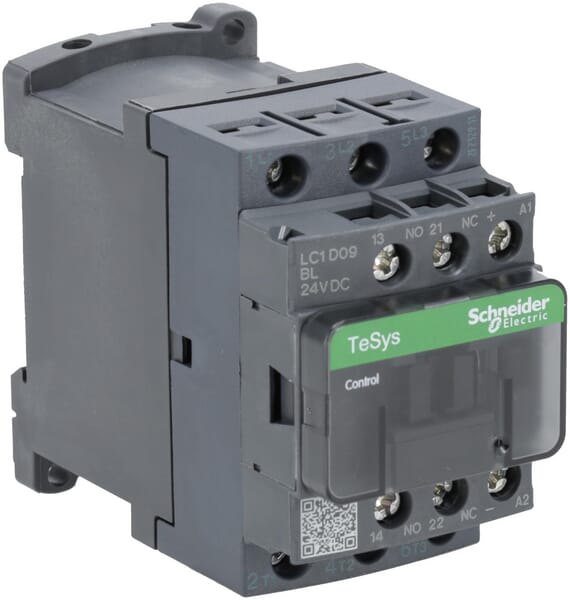

Schneider-Electric Contacter 9A 4kW LC1D09BL
£77.10 excl.
£92.52 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000233029

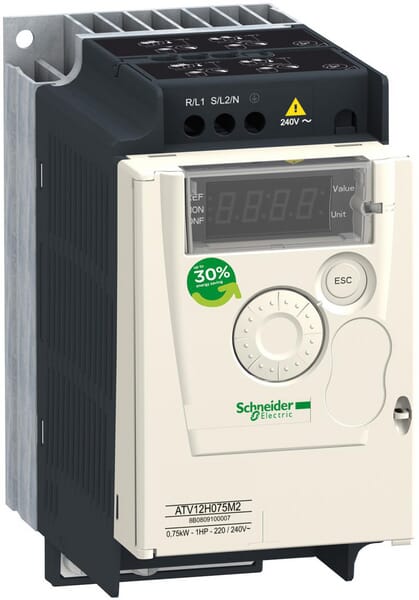

Schneider-Electric Frequency inverter 1F-0,75kW ATV12H075M2
£353.38 excl.
£424.06 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000398015

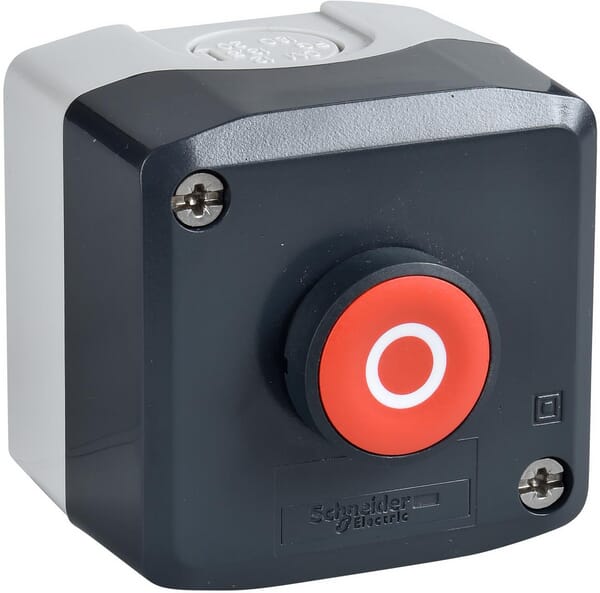

Schneider-Electric Push button box, red XALD112
£34.57 excl.
£41.48 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000402937

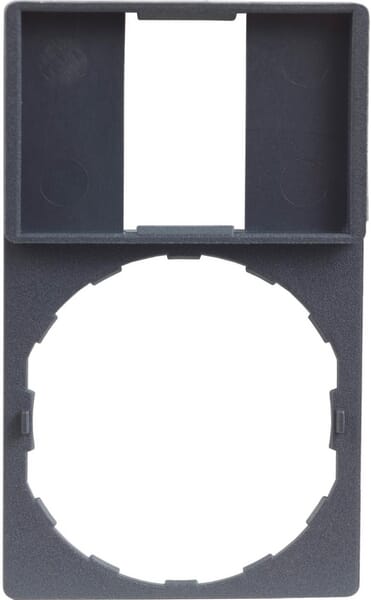

Schneider-Electric Legend holder 30x50mm ZBZ33
£1.20 excl.
£1.44 incl.
In stock
Expected to ship on Tuesday 22 September

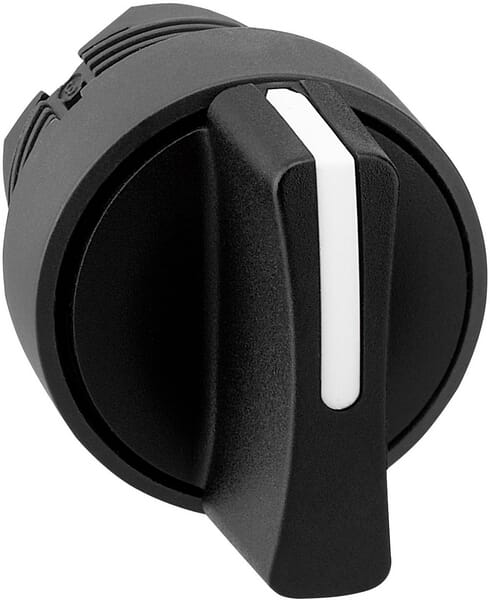

BPA000402685
