£18.09
excl. VAT
£21.71 incl. VAT
Pack of 3 · £6.03 each excl. VAT
£21.71
incl. VAT
£18.09 excl. VAT
Pack of 3 · £7.24 each incl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Angle | 30 ° |
|---|---|
| Groove width | 5.8 mm |
| Inside diameter | 55 mm |
| Long description | These 10E/GTP guide rings are made from cotton fabric reinforced with phenolic resin, providing a strong and reliable solution for guiding rods and pistons in hydraulic systems. They ensure proper alignment, absorb lateral forces, and protect against metal-to-metal contact. Their durable build safeguards both shaft and housing from wear, making these bearing rings ideal for mobile and heavy-duty applications with high surface pressures. |
| Material guide ring | Synthetic |
| Outside diameter | 60 mm |
| Piston-guiding | Yes |
| Product details | Guide rings for pistons and rods of hydraulic cylinders, Piston rod guidance, Prevents metallic contact, Suitable for high loads, Low friction, Material : Cotton fabric, reinforced with phenolic resin, Maximum sliding speed : 1 m/s, Temperature range : -30°C till 120°C, Cutting angle : 30° |
| Qty. Rounding | 3 |
| Rod-guiding | No |
| Type | Guide ring, Piston guiding |
| Type code | 10E/GTP |
| Unit | Each |
| Width | 5.6 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4 g |
| Dimensions | 65 × 65 × 5 mm |
| Dangerous goods | No |
You might also like
BPA000031670
Sealtech Guide ring 56x61x9,7 - 10I/GTP1 10IGTP1250970560A
£7.14 excl.
£8.57 incl.
In stock
Expected to ship on Wednesday 30 September
BPA000031675

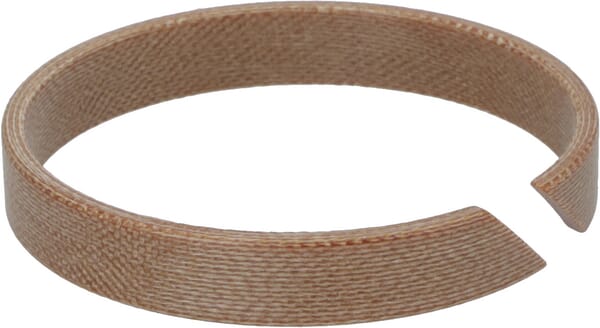

Sealtech Guide ring 110x115x15 - 10I/GTP1 10IGTP1251501100A
£12.36 excl.
£14.83 incl.
In stock
Expected to ship on Thursday 1 October
BPA000031748
Sealtech Seal 45,00x40,00x5,40mm 10XS451
£3.19 excl.
£3.83 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000031554

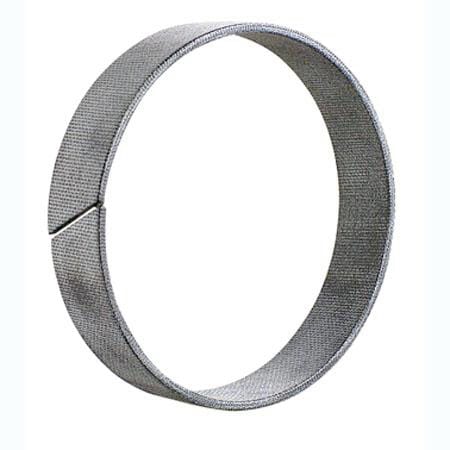

Sealtech Guide ring 80x75x15 - 10E/GTP 10EGTP1251500800A
£11.23 excl.
£13.48 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000031732

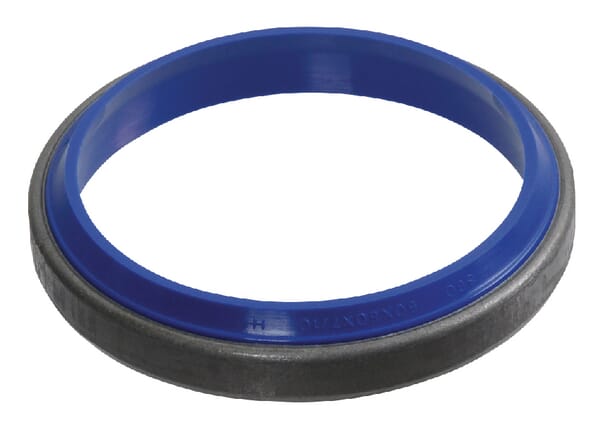

Sealtech Rod wiper ASM 79x65x8mm 10PW65U
