Product details
| Angle | 45 ° |
|---|---|
| Groove width | 25.2 mm |
| Inside diameter | 60 mm |
| Long description | The 10I/GTP1 guide rings are made from PTFE-enhanced synthetic fabric reinforced with phenolic resin. They prevent metal-to-metal contact and absorb side loads in hydraulic systems, making them ideal for high-pressure applications in mobile and heavy-duty equipment. The added PTFE ensures smooth sliding and minimizes stick-slip for optimal performance. |
| Material guide ring | Synthetic |
| Outside diameter | 65 mm |
| Piston-guiding | No |
| Product details | Guide rings for pistons and rods of hydraulic cylinders, Piston rod guidance, Prevents metallic contact, Suitable for high loads, Low friction, Material : Synthetic fabric, reinforced with phenolic resin + PTFE, Maximum sliding speed : 1 m/s, Temperature range : -30°C till 120°C, Cutting angle : 45° |
| Rod-guiding | Yes |
| Type | Guide ring, Rod guiding |
| Type code | 10I/GTP1 |
| Unit | Each |
| Width | 25 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 20 g |
| Dimensions | 65 × 65 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000031553
Sealtech Guide ring 75x70x15 - 10E/GTP 10EGTP1251500750A
£9.96 excl.
£11.95 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000279971

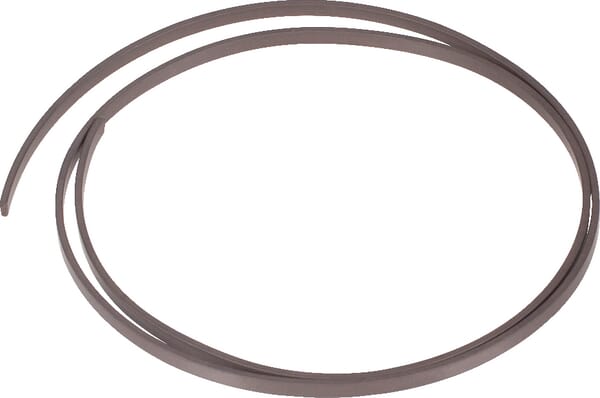

Sealtech Guide strip coil 6.3x1.5 GB02
