About this product

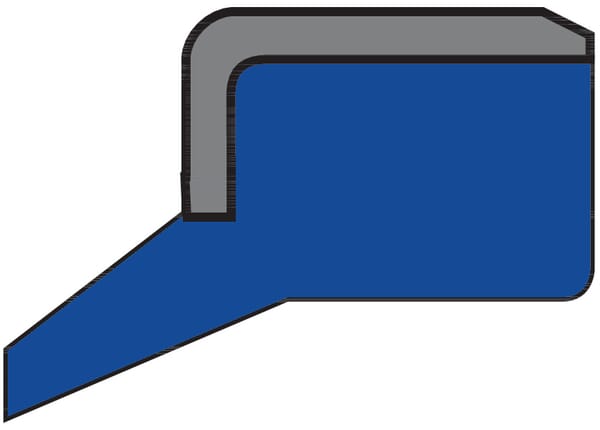

A Sealtech type 860 single-lip rod wiper with metal housing, designed for press fitment in open-groove cylinder heads. It measures 75 mm inner diameter, 89 mm outer diameter and 8 mm groove width.
Built from polyurethane with anti-corrosion treated steel, it supports sliding speeds up to 1 m/s and working temperatures between -40 °C and 100 °C.
A rod wiper cleans dirt and moisture from the moving cylinder rod.
Product details
| d1Inner diameter | 75 mm |
|---|---|
| D1Outer diameter | 89 mm |
| Groove width | 8 mm |
| L2Total width | 8 mm |

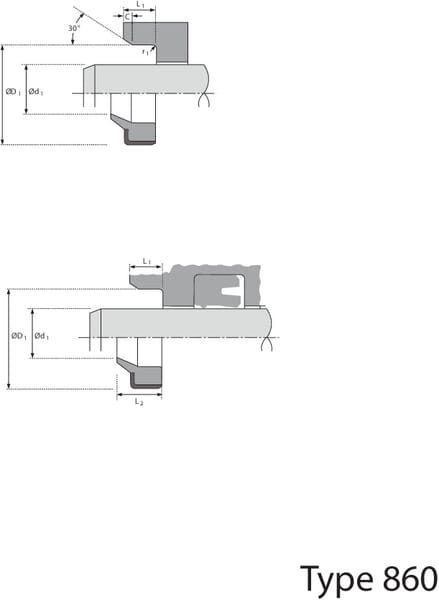

| Long description | Type 860 wipers feature a single lip and a metal housing. These are designed for press fitment in an open-groove cylinder head. The polyurethane wiper follows the lateral movements of the rod and an excellent choice for very dirty conditions. |
| Material wiper seal | Polyurethane, Metal |
| Max. sliding speed | 1 m/s |
| Max. working temperature | 100 °C |
| Min. working temperature | -40 °C |
| Product details | Good wear resistance, Oversized fit, Installation in open chamber, Steel outer coating treated with anti-corrosion agent, Temperature -40°C +100°C, Maximum speed: 1.0 m/sec |
| Type | Rod wiper |
| Type code | 860 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 38 g |
| Dimensions | 90 × 90 × 12 mm |
| Dangerous goods | No |
