| Application range |
Combustion engines
|
| Benefits |
Automatic switching from induction to stop coil, Protects against short circuit
|
| Consists of |
Stop magnet with assembly foot and 130 mm connecting cable
|
| Content in sale unit |
1 pcs
|
| Details |
• Stop magnet must be able to perform a complete stroke, otherwise the induction coil burns through, Insulated design
|
| Operating current |
23
|
| Properties |

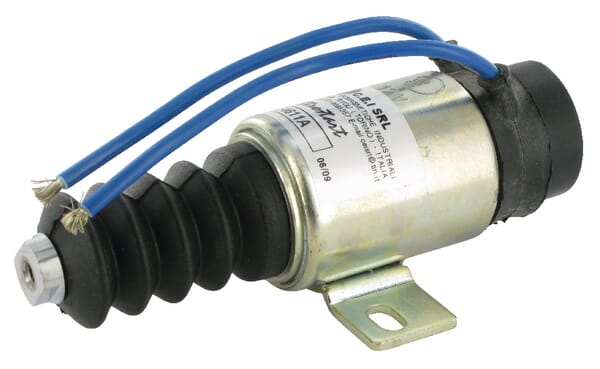

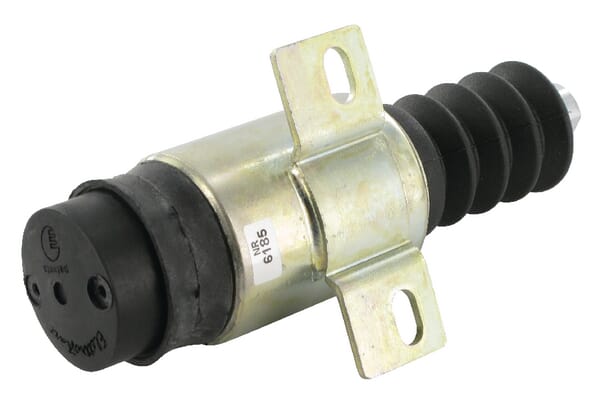

Stop magnet for interrupting fuel supply
|
| Supply voltage |
12 V
|
| Technical info |

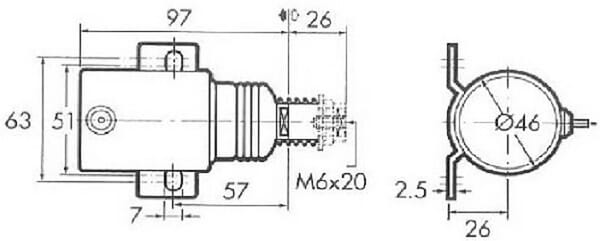

Power supply: 12 V, Withdrawal current: 44.5 Ampere, Withdrawal current: 0.6 Ampere, Maximum stroke length: 25 mm, Force at 4 mm: 100 N, Force at 25 mm: 70 N, Weight: 680 g
|
| Unit |
Each
|
