Product details
| Application range | Combustion engines |
|---|---|
| Benefits | Automatic switching from induction to stop coil, Insulated design |

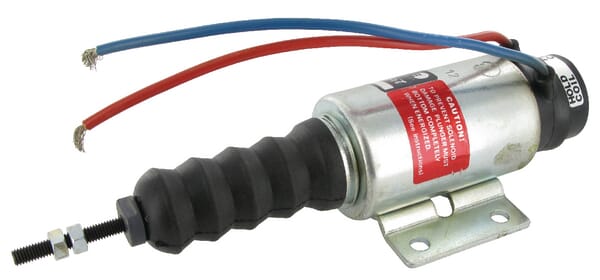

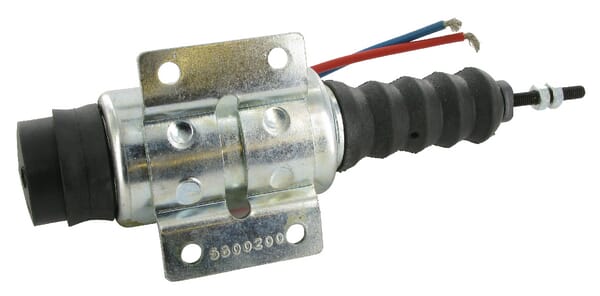

| Consists of | Stop magnet with assembly foot and 180 mm connecting cable |
| Content in sale unit | 1 pcs |
| Details | With thermal fuse to protect the induction coil, Stop magnet must be able to perform a complete stroke, otherwise the thermal fuse is actuated |
| Operating current | 41 |
| Properties | Stop magnet for interrupting fuel supply |
| Supply voltage | 12 V |
| Technical info | Power supply: 12 V, Withdrawal current: 41 Ampere, Withdrawal current: 0.5 Ampere, Maximum stroke length: 40 mm, Force at 4 mm: 100 N, Force at 25 mm: 66 N, Force at 40 mm: 43 N, Weight: 1180 g, Red cable: +12 V from the input coil, Blue cable: +12 V from the stop coil, Housing: earth |
| Unit | Each |
Logistics
| EAN | 8719326815404 |
|---|---|
| Unit of measure | EA |
| Weight | 1177 g |

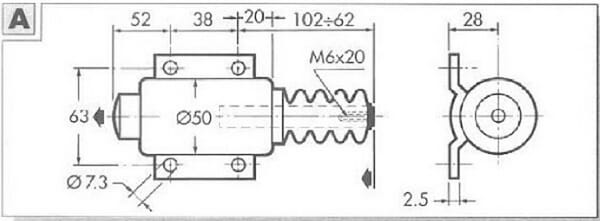

| Dimensions | 201 × 65 × 65 mm |
| Dangerous goods | No |
