Product details
| Application range | Combustion engines |
|---|---|
| Benefits | Automatic switching from induction to stop coil, Insulated design |
| Consists of | Stop magnet with assembly foot and 180 mm connecting cable |
| Content in sale unit | 1 pcs |
| Details | With thermal fuse to protect the induction coil, Stop magnet must be able to perform a complete stroke, otherwise the thermal fuse is actuated |

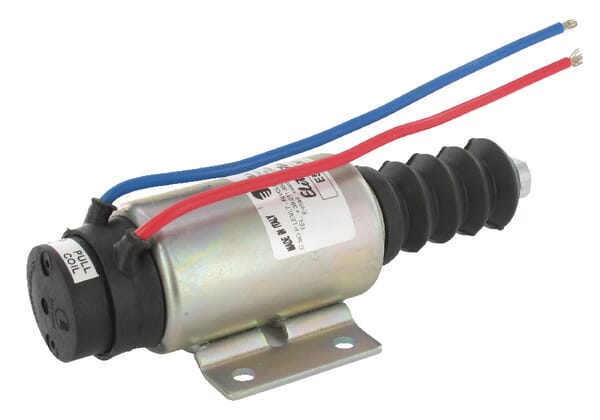

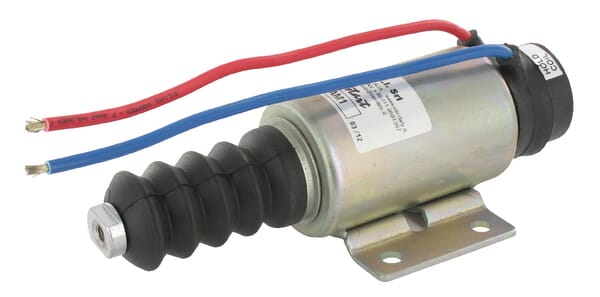

| Properties | Stop magnet for interrupting fuel supply |
| Supply voltage | 24 V |
| Technical info | Power supply: 24V, Withdrawal current: 23 Ampere, Withdrawal current: 0.28 Ampere, Maximum stroke length: 40mm, Force at 4mm: 100N, Force at 25mm: 66N, Force at 40mm: 43N, Weight: 1180 g, Red cable: +24V from the input coil, Blue cable: +24V from the stop coil, Housing: earth |
| Unit | Each |
Logistics
| EAN | 8719326815411 |
|---|---|
| Unit of measure | EA |
| Weight | 1201 g |
| Dimensions | 189 × 126 × 66 mm |
| Dangerous goods | No |
