£173.20
excl. VAT
£207.84 incl. VAT
£207.84
incl. VAT
£173.20 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

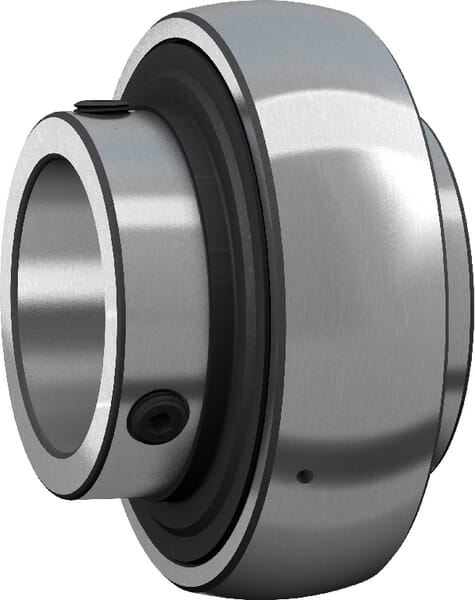

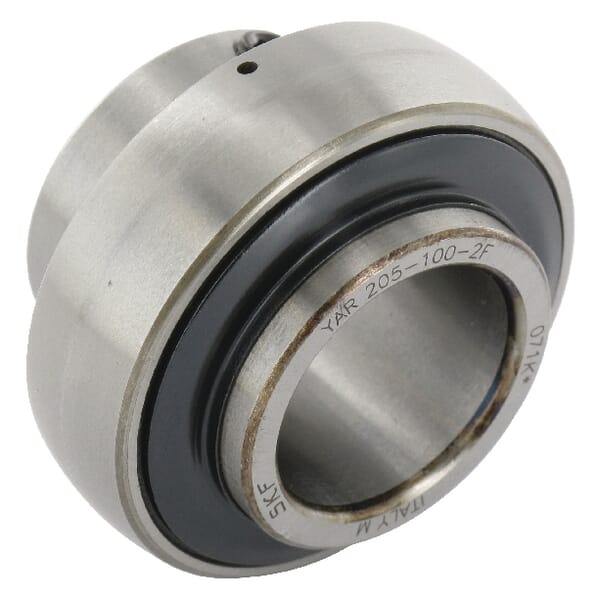

Product details

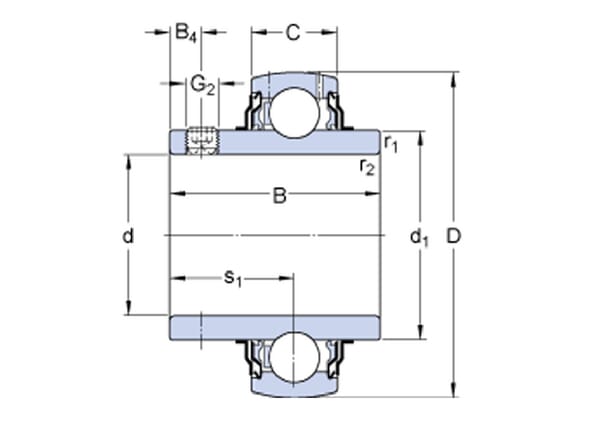

| B4Ball centre to end distance | 42.9 mm |
|---|---|
| Basic radial load dynamic | 57200 N |
| Basic radial load static | 40000 N |
| BInner ring width | 68.3 mm |
| Bore type | Cylindrical |
| COuter ring width | 27 mm |
| d1Outside diameter of inner ring | 82.5 mm |
| dInside diameter | 68.263 mm |
| DOutside diameter | 120 mm |
| G2Locking screw centre to end distance | 10 mm |
| Inner ring shape | Cylindrical |
| Inside diameter | 2-11/16 Inch |
| Limiting speed | 50 r/s |
| Locking collar and inner ring width | 68.3 mm |
| Material | Steel |
| Max rotation speed | 3000 r/min |
| Original number equivalent | YAR2132112F |

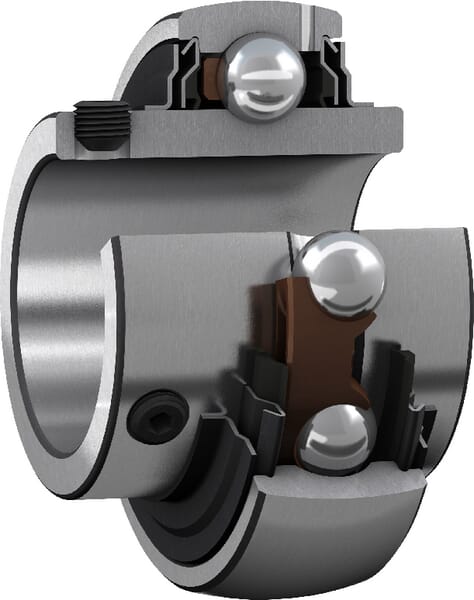

| Product details | One-sided extended inner ring with 2 adjusting screws, Convex outer ring with lubricating holes, P seal, Polyamide housing |
| Regreasable | Yes |
| Sealing | 2RS |
| Shaft lock type | Set screws |
| Unit | Each |
| Weight | 1.597 kg |
Logistics
| EAN | 7316576617447 |
|---|---|
| Unit of measure | EA |
| Weight | 1634 g |
| Dimensions | 126 × 123 × 72 mm |
| Dangerous goods | No |
You might also like
BPA000398204

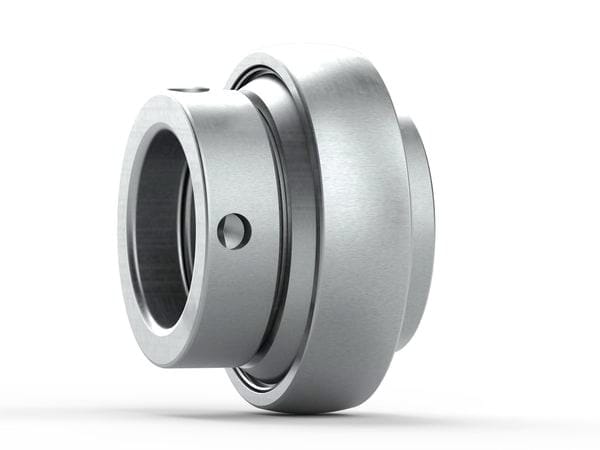

SKF Bearing insert 45x85x56.3 XGGE45KTTB
£48.53 excl.
£58.24 incl.
In stock
Expected to ship on Friday 18 September
BPA000173555
SKF Bearing insert 12x40x12mm 7500YAR203122F
£26.56 excl.
£31.87 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000137025

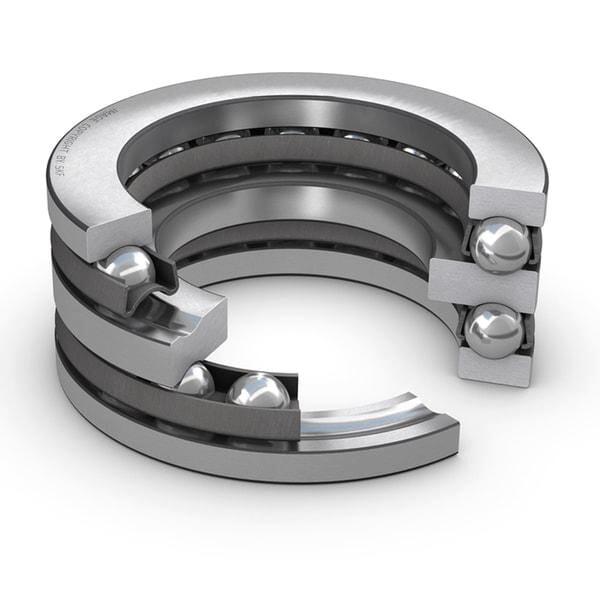

SKF Deep groove ball bearing (axial) 52308
£279.68 excl.
£335.62 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000366972

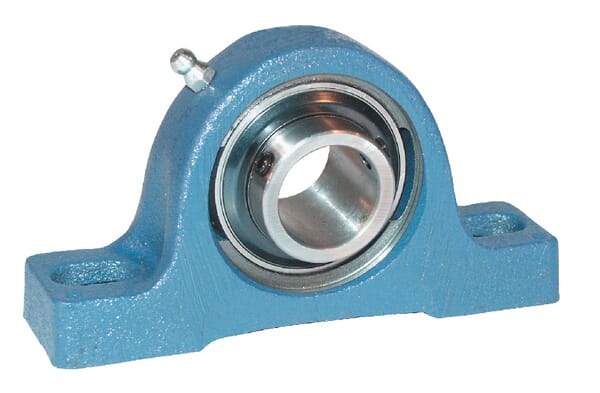

SKF Housing unit SY2TF
