£14.65
excl. VAT
£17.58 incl. VAT
£17.58
incl. VAT
£14.65 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Basic radial load dynamic | 19500 N |
|---|---|
| Basic radial load static | 11300 N |
| BInner ring width | 36.4 mm |
| Bore type | Cylindrical |
| COuter ring width | 48.3 mm |
| dInside diameter | 30 mm |
| DspOutside diameter | 62 mm |
| Includes | Bearing insert, Clamping ring |
| Inner ring shape | Cylindrical |
| Limiting speed | 43.8 r/s |
| Locking collar and inner ring width | 48.3 mm |

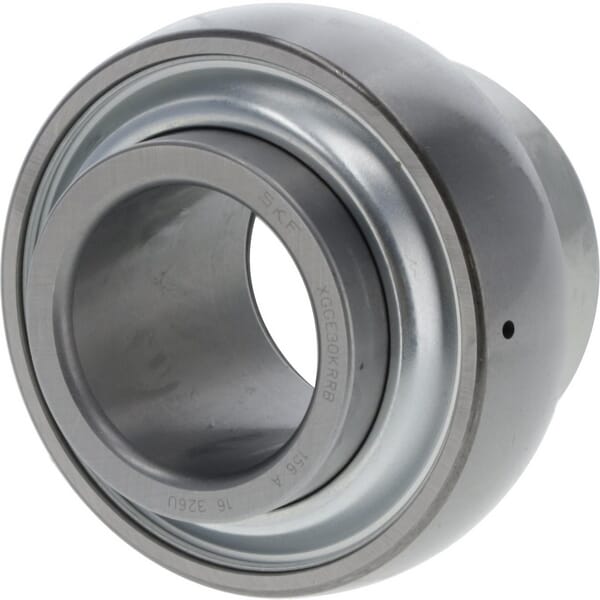

| Long description | SKF XG-GE bearings are deep groove ball bearings designed for use in the agricultural sector. These bearings feature a specially designed inner ring that helps increase bearing reliability and durability, and are equipped with a seal that protects against contamination and moisture. XGGE bearings are designed with an eccentric locking collar, meaning they can be easily mounted on the shaft without the need for additional fasteners. This makes them particularly suitable for applications where little space is available for mounting. |
| Material | Steel |
| Max rotation speed | 5000 r/min |
| Original number equivalent | XGGE30KRRB |
| Product details | Extended inner ring on both sides with tension ring, Convex outer ring with lubricating holes, KRR seal (contact, rubber-coated, and resiliently-seated), Polyamide cage, Eccentric locking collar, Specifically designed for agricultural application |
| Pros | Easy installation |
| Regreasable | Yes |
| Sealing | 2RS |
| Shaft lock type | Eccentric collar |
| Unit | Each |
| Weight | 0.37 kg |
Logistics
| EAN | 7316579950855 |
|---|---|
| Unit of measure | EA |
| Weight | 388 g |
| Dimensions | 90 × 90 × 60 mm |
| Dangerous goods | No |
You might also like
BPA000169548
SKF Deep groove ball bearing 17x30x7mm 750061903ZZ
£27.54 excl.
£33.05 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000169808
SKF Deep groove ball bearing 75x160x37mm 75006315
£167.81 excl.
£201.37 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000168505
SKF Angular contact ball bearing 45x100x25mm 7309BEGAPH
£210.03 excl.
£252.04 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000326387

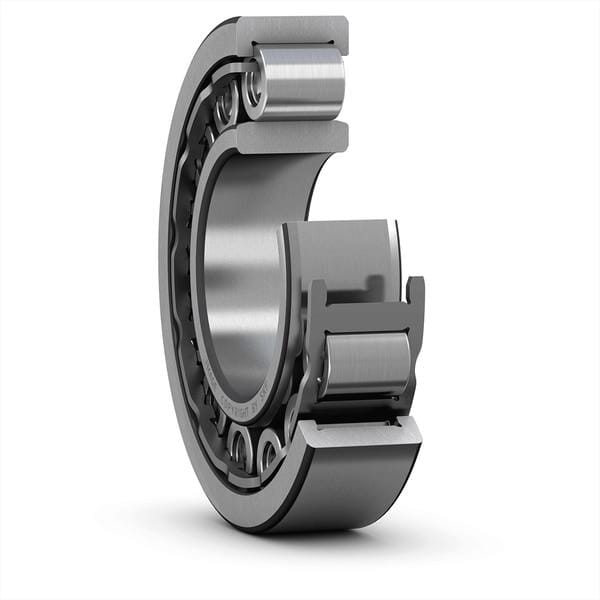

SKF Cylindrical roller bearing 75x160x55mm NU2315ECJ
