£478.36
excl. VAT
£574.03 incl. VAT
£574.03
incl. VAT
£478.36 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 285000 N |
| Basic radial load static | 305000 N |
| Bearing model type | Cylindrical roller bearings |
| Bore type | Cylindrical |
| BWidth | 34 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 100 mm |
| DOutside diameter | 180 mm |
| Inner ring shape | Cylindrical |
| Limiting speed | 75 r/s |
| Material | Steel |
| Max rotation speed | 4500 r/min |
| Original number equivalent | NU220ECJC3 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | C3 |
| Ref rotation speed | 4000 r/min |
| Regreasable | No |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 3.385 kg |
Logistics
| EAN | 7316577042132 |
|---|---|
| Unit of measure | EA |
| Weight | 3532 g |
| Dimensions | 190 × 190 × 40 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000326330

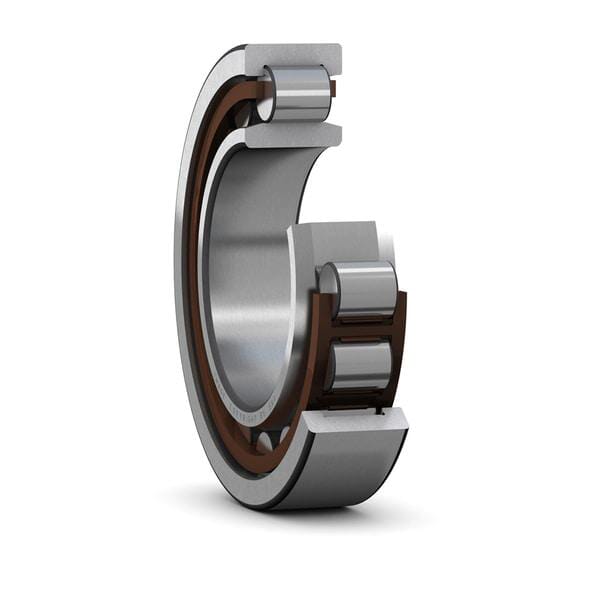

SKF Cylindrical roller bearing 100x180x34mm NU220ECP
£381.13 excl.
£457.36 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000326328
SKF Cylindrical roller bearing 100x180x34mm NU220ECJ
£417.54 excl.
£501.05 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000326331
SKF Cylindrical roller bearing 100x180x34mm NU220ECPC3
£434.51 excl.
£521.41 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000070330

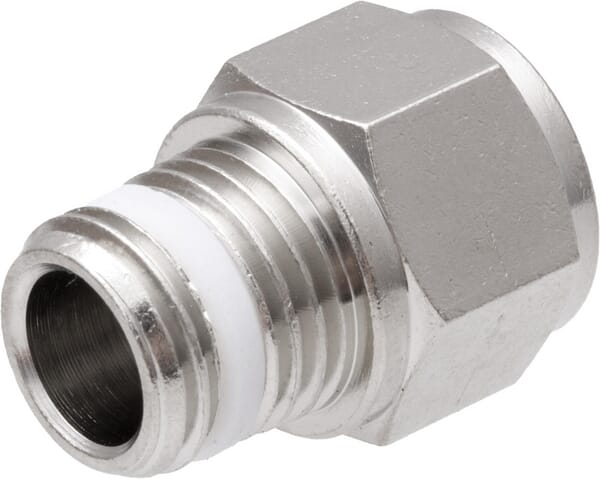

SKF Nipple 226141055
