£1,205.92
excl. VAT
£1,447.10 incl. VAT
£1,447.10
incl. VAT
£1,205.92 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Manual gearbox, Gearbox casing, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 390000 N |
| Basic radial load static | 430000 N |
| Bearing model type | Cylindrical roller bearings |
| Bore type | Cylindrical |
| BWidth | 40 mm |
| Consists of | Cylindrical roller bearing with NUP inner ring |
| dInside diameter | 120 mm |
| DOutside diameter | 215 mm |
| Inner ring shape | Cylindrical |
| Limiting speed | 60 r/s |
| Material | Steel |
| Max rotation speed | 3600 r/min |
| Original number equivalent | NUP224ECJ |
| Radial internal clearance code | CN |
| Ref rotation speed | 3400 r/min |
| Regreasable | No |
| Rows number | 1 |
| Sealing | Open |
| Technical info | Outer ring with 2 fixed ribs, Inner ring with 1 fixed and 1 loose rib, Fixed bearing, to lock shaft axially in 2 directions |
| Unit | Each |
| Weight | 5.95 kg |
Logistics
| EAN | 7316577042866 |
|---|---|
| Unit of measure | EA |
| Weight | 5950 g |
| Dimensions | 1 × 1 × 1 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000278548
SKF Flange bearing complete FY FY134TF
£118.82 excl.
£142.58 incl.
In stock
Expected to ship on Monday 21 September
BPA000404223

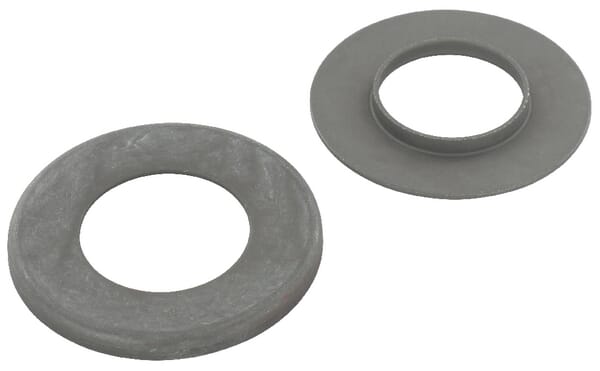

SKF Labyrinth seal Z006FSKF
£13.12 excl.
£15.74 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000168802

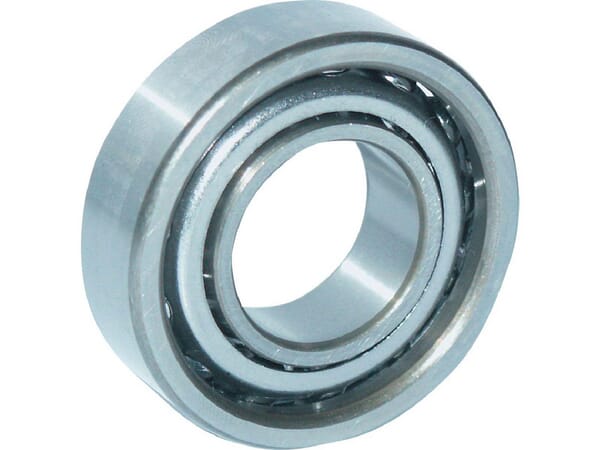

SKF Angular contact ball bearing 90x190x43mm 7318BECBP
£801.61 excl.
£961.93 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000169791

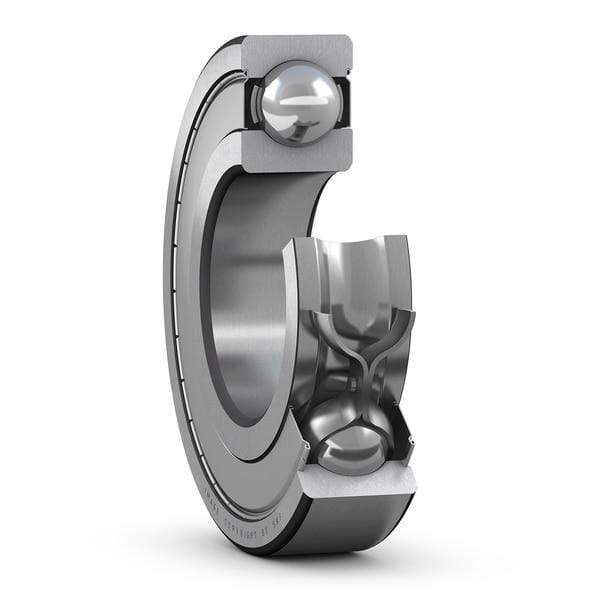

SKF Deep groove ball bearing 50x110x27mm 75006310ZZ
£53.96 excl.
£64.75 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000155796

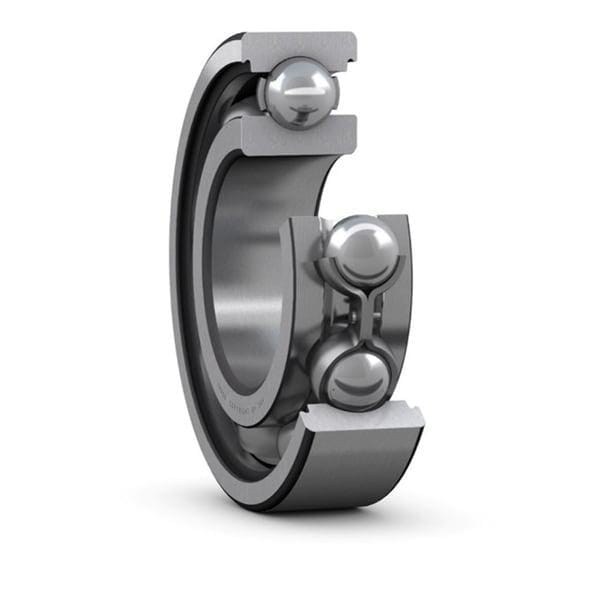

SKF Deep groove ball bearing 130x230x40mm 6226C3
£606.81 excl.
£728.17 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000070739

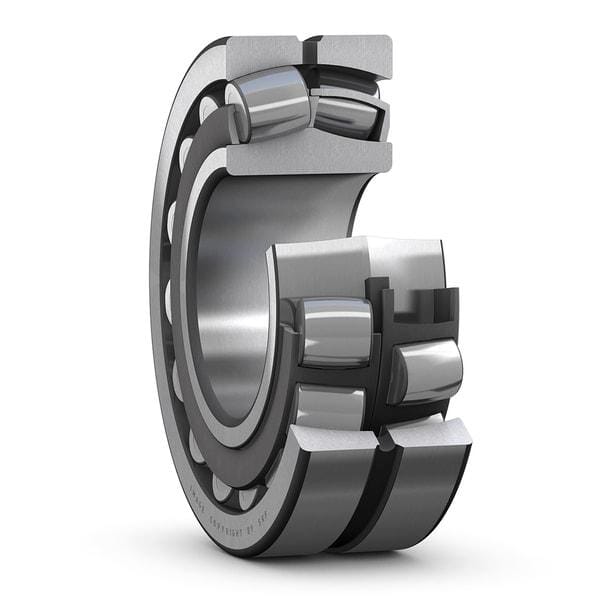

SKF Spherical roller bearing 260x400x104mm 23052CCC3W33
