About this product

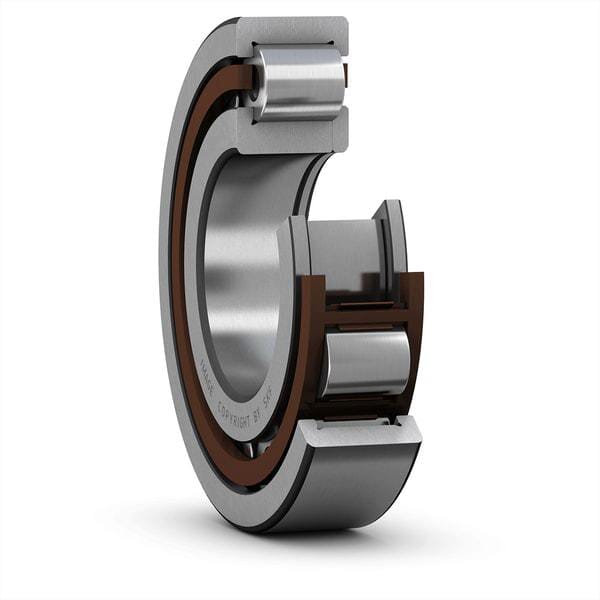

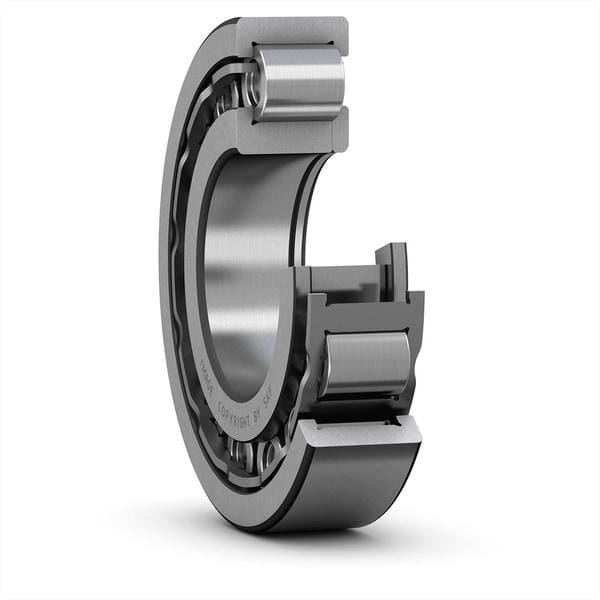

A single-row cylindrical roller bearing with a 130 mm bore, 230 mm outside diameter, and 40 mm width, supplied as an individual unit. The bearing is rated for a basic dynamic radial load of 415 kN and static radial load of 455 kN, with a maximum rotation speed of 3400 r/min and reference speed of 3200 r/min. The inner ring is cylindrical with one fixed and one loose rib, whilst the outer ring features two fixed ribs, providing axial shaft locking in both directions. Radial internal clearance is specified as CN. The bearing is manufactured from steel with an open (unsealed) design and is not regreasable. This bearing is suitable for applications involving high radial loads and high speeds, including manual gearboxes, gearbox casings, worm gear shafts, and spring plate assemblies. The bearing weighs 6.48 kg and carries the EAN 7316577045751.
Product details
| Application range | High radial loads and high speeds, Manual gearbox, Gearbox casing, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 415000 N |
| Basic radial load static | 455000 N |
| Bearing model type | Cylindrical roller bearings |
| Bore type | Cylindrical |

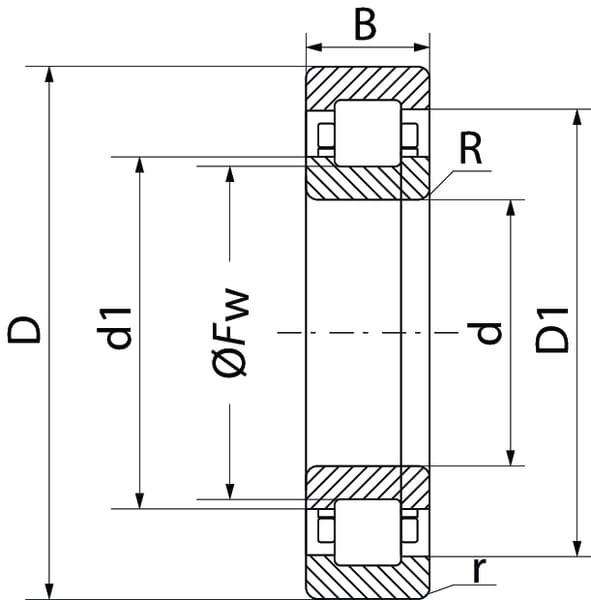

| BWidth | 40 mm |
| Consists of | Cylindrical roller bearing with NUP inner ring |
| dInside diameter | 130 mm |
| DOutside diameter | 230 mm |
| Inner ring shape | Cylindrical |
| Limiting speed | 56.7 r/s |
| Material | Steel |
| Max rotation speed | 3400 r/min |
| Original number equivalent | NUP226ECJ |
| Radial internal clearance code | CN |
| Ref rotation speed | 3200 r/min |
| Regreasable | No |
| Rows number | 1 |
| Sealing | Open |
| Technical info | Outer ring with 2 fixed ribs, Inner ring with 1 fixed and 1 loose rib, Fixed bearing, to lock shaft axially in 2 directions |
| Unit | Each |
| Weight | 6.48 kg |
Logistics
| EAN | 7316577045751 |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
