£91.87
excl. VAT
£110.24 incl. VAT
£110.24
incl. VAT
£91.87 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 35500 N |
| Basic radial load static | 26000 N |
| Bearing model type | Cylindrical roller bearings |
| Bore type | Cylindrical |

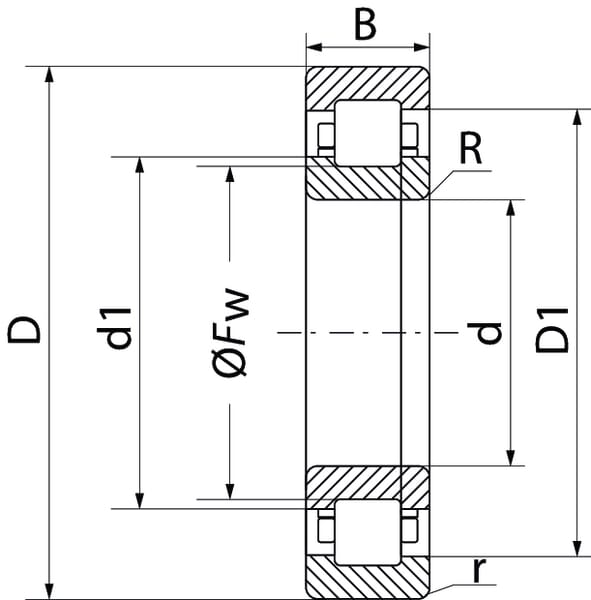

| BWidth | 15 mm |
| Consists of | Cylindrical bearing, Inner ring NUP |
| dInside diameter | 20 mm |
| DOutside diameter | 52 mm |
| Inner ring shape | Cylindrical |
| Limiting speed | 300 r/s |
| Material | Steel |
| Max rotation speed | 18000 r/min |
| Original number equivalent | NUP304ECP |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 fixed and 1 loose rib, Fixed bearing, to lock shaft axially in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 15000 r/min |
| Regreasable | No |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.156 kg |
Logistics
| EAN | 7316577031327 |
|---|---|
| Unit of measure | EA |
| Weight | 161 g |
| Dimensions | 54 × 50 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000172962
SKF Deep groove ball bearing 15x32x9mm 7500E26002ZZC3
£9.51 excl.
£11.41 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000173587

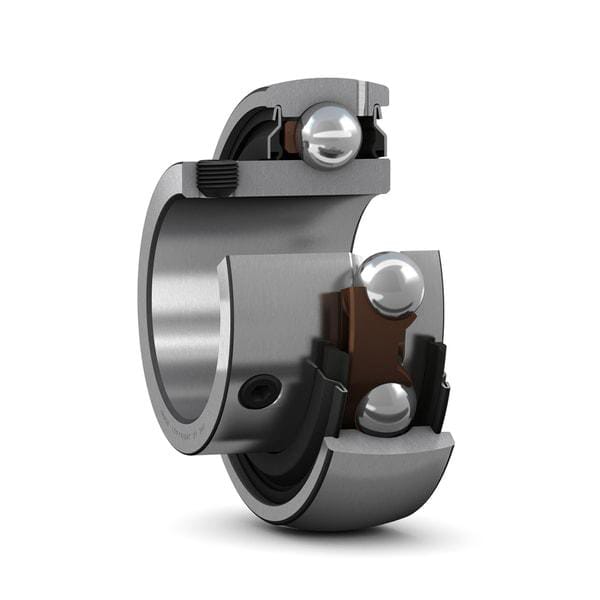

SKF Bearing insert 30x62x18mm 7500YAT206
£27.93 excl.
£33.52 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000278549

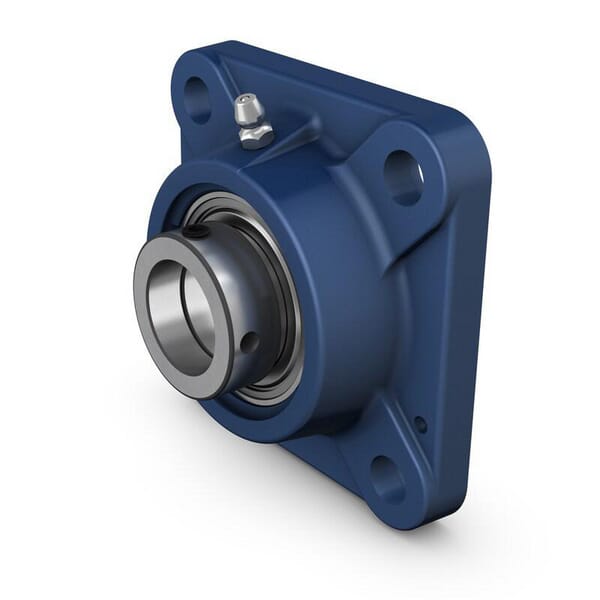

SKF Housing unit FY134WF
£198.95 excl.
£238.74 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000153393

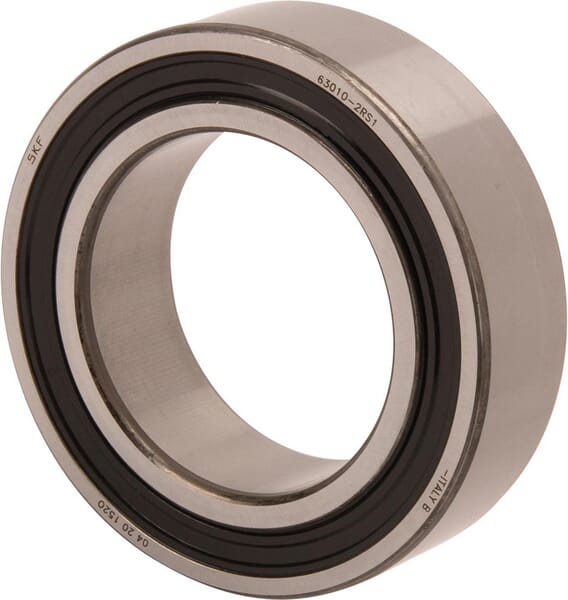

SKF Roller bearing 50x80x23mm 630102RS1SKF
£75.72 excl.
£90.86 incl.
In stock
Expected to ship on Friday 18 September
BPA000325324

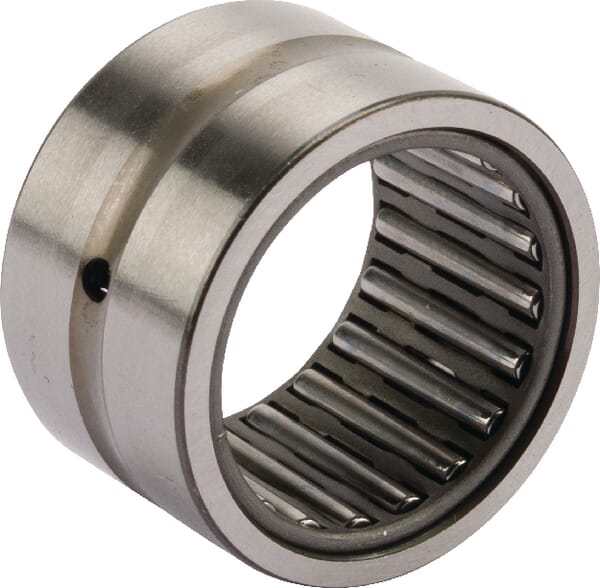

SKF Needle bearing NK3820SKF
£52.20 excl.
£62.64 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000285300

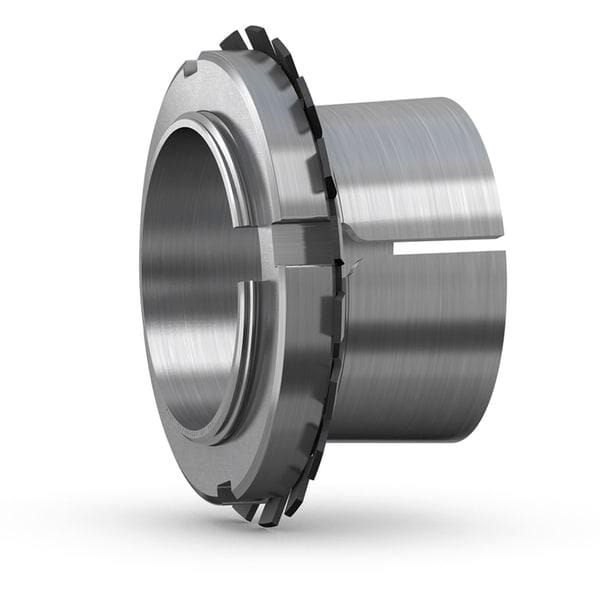

SKF Expansion bush 135x195x139mm H2338
