£291.53
excl. VAT
£349.84 incl. VAT
£349.84
incl. VAT
£291.53 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 156000 N |
| Basic radial load static | 143000 N |
| Bearing model type | Cylindrical roller bearings |
| Bore type | Cylindrical |
| Consists of | Cylindrical bearing, Inner ring NU |
| Inner ring shape | Cylindrical |
| Inside diameter | 55 mm |
| Limiting speed | 116.7 r/s |
| Max rotation speed | 7000 r/min |
| Original number equivalent | N311ECP |
| Outside diameter | 120 mm |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 6000 r/min |
| Regreasable | No |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 1.459 kg |
| Width | 29 mm |
Logistics
| EAN | 7316577109354 |
|---|---|
| Unit of measure | EA |
| Weight | 1459 g |
| Dimensions | 1 × 1 × 1 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000088924
SKF Angular contact ball bearing 50x90x30.2mm 3210A
£171.64 excl.
£205.97 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000324725
SKF Stud type track roller NATV12PPASKF
£98.84 excl.
£118.61 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000278535

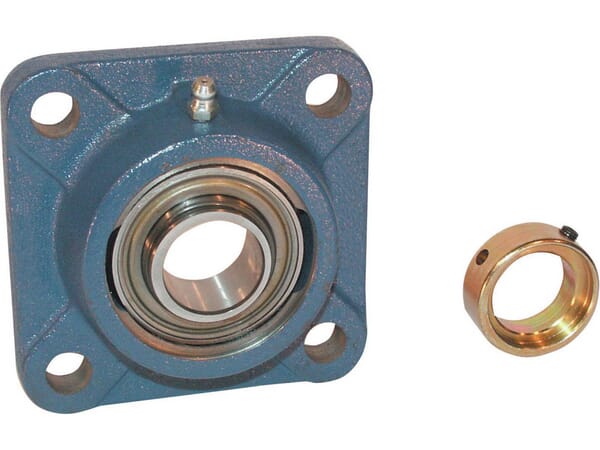

SKF Housing unit FY114FM
£110.90 excl.
£133.08 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000349610
SKF Deep groove ball bearing 31.75x79.38x22.23mm RMS10SKF
£109.92 excl.
£131.90 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000265285
SKF Housing Unit SKF Foodline F3BC25MTPZM
£235.94 excl.
£283.13 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000362705

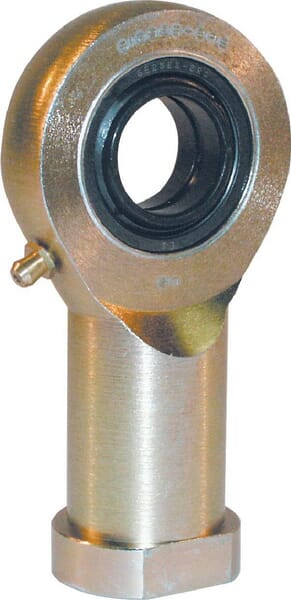

SKF Rod end SIKB6F
