£420.80
excl. VAT
£504.96 incl. VAT
£504.96
incl. VAT
£420.80 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 212000 N |
| Basic radial load static | 196000 N |
| Bearing model type | Cylindrical roller bearings |
| Bore type | Cylindrical |
| Consists of | Cylindrical bearing, Inner ring NU |
| Inner ring shape | Cylindrical |
| Inside diameter | 65 mm |
| Limiting speed | 100 r/s |
| Max rotation speed | 6000 r/min |
| Original number equivalent | N313ECP |
| Outside diameter | 140 mm |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 5300 r/min |
| Regreasable | No |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 2.181 kg |
| Width | 33 mm |
Logistics
| EAN | 7316577109392 |
|---|---|
| Unit of measure | EA |
| Weight | 2181 g |
| Dimensions | — |
| Dangerous goods | No |
You might also like
BPA000173278

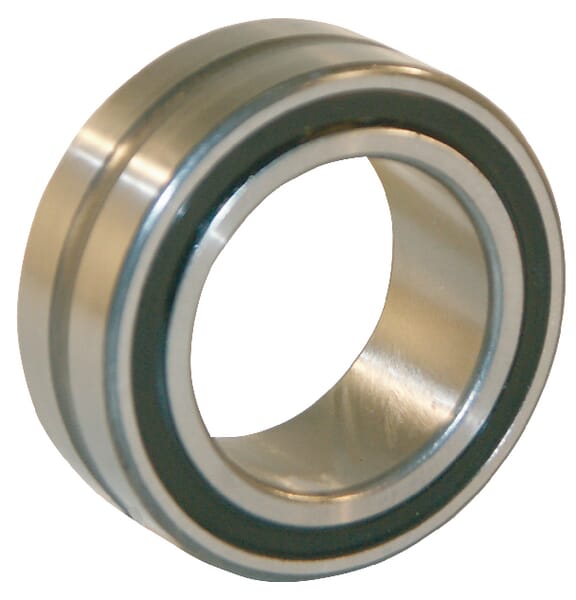

SKF Needle bearing 7500NKI3530
£78.80 excl.
£94.56 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000154496
SKF Pump unit 4L 12 V low level 644375011
£1,317.91 excl.
£1,581.49 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000168805
SKF Angular contact ball bearing 90x190x43mm 7318BEGAPH
£1,167.53 excl.
£1,401.04 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000278062

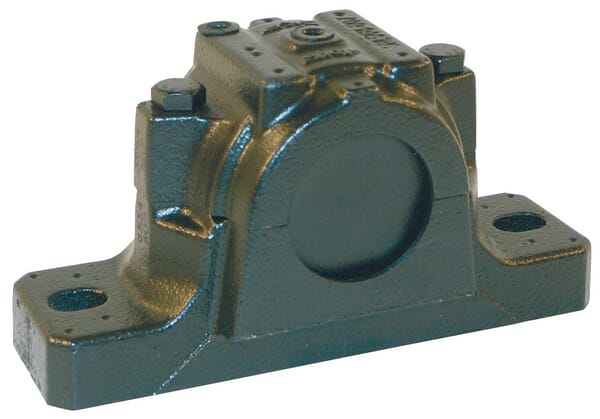

SKF Plummer block housings FSNLD530
