£299.39
excl. VAT
£359.27 incl. VAT
£359.27
incl. VAT
£299.39 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 180000 N |
| Basic radial load static | 193000 N |
| Bearing model type | Cylindrical roller bearings |
| Bore type | Cylindrical |
| BWidth | 31 mm |
| Consists of | Cylindrical bearing, Inner ring NUP |
| dInside diameter | 70 mm |
| DOutside diameter | 125 mm |
| Inner ring shape | Cylindrical |
| Limiting speed | 105 r/s |
| Material | Steel |
| Max rotation speed | 6300 r/min |
| Original number equivalent | NUP2214ECP |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 fixed and 1 loose rib, Fixed bearing, to lock shaft axially in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 6000 r/min |
| Regreasable | No |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 1.566 kg |
Logistics
| EAN | 7316577113771 |
|---|---|
| Unit of measure | EA |
| Weight | 1580 g |
| Dimensions | 145 × 145 × 40 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000325191

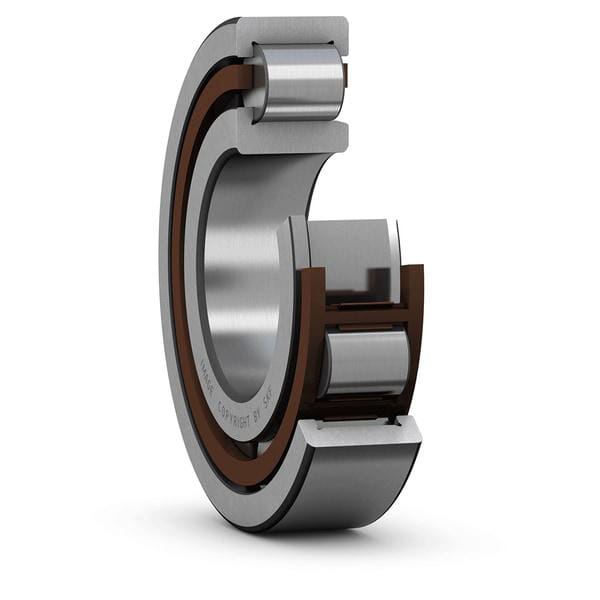

SKF Cylindrical roller bearing 75x160x37mm NJ315ECPC3
£393.84 excl.
£472.61 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000172970
SKF Deep groove ball bearing 25x52x15mm 7500E26205ZZC3
£15.64 excl.
£18.77 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000366986
SKF Housing unit SY SY60WFSKF
£287.17 excl.
£344.60 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000065612
SKF Spherical roller bearing 20x52x15mm 20304TN9
£344.32 excl.
£413.18 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000169484
SKF Deep groove ball bearing 80x125x22mm 750060162RSC3
£68.12 excl.
£81.74 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000173302

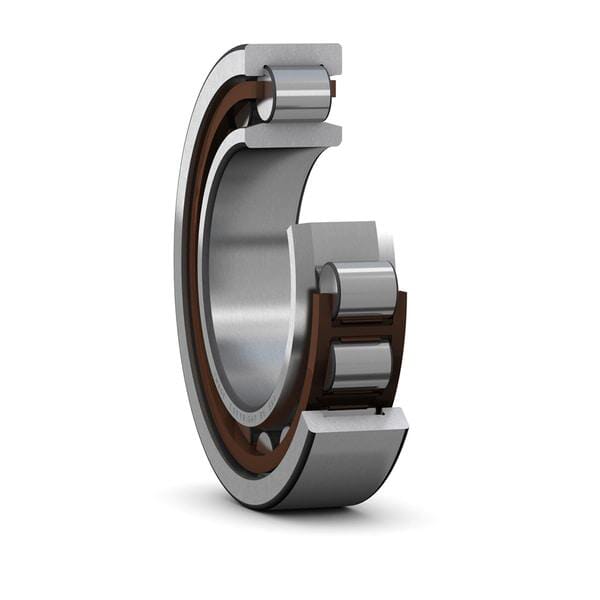

SKF Cylindrical roller bearing 70x125x24mm 7500NU214EC3
