£494.24
excl. VAT
£593.09 incl. VAT
£593.09
incl. VAT
£494.24 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 236000 N |
| Basic radial load static | 228000 N |

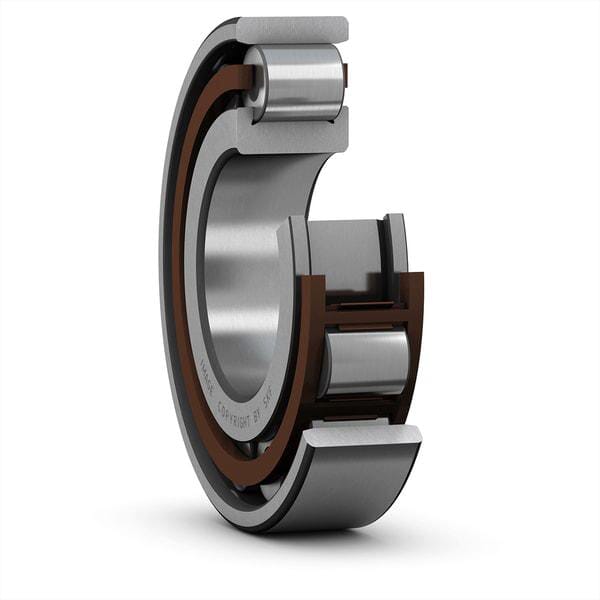

| Bearing model type | Cylindrical roller bearings |
| Bore type | Cylindrical |
| Consists of | Cylindrical bearing, Inner ring NU |
| Inner ring shape | Cylindrical |
| Inside diameter | 70 mm |
| Limiting speed | 93.3 r/s |
| Max rotation speed | 5600 r/min |
| Original number equivalent | N314ECP |
| Outside diameter | 150 mm |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 4800 r/min |
| Regreasable | No |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 2.671 kg |
| Width | 35 mm |
Logistics
| EAN | 7316577109453 |
|---|---|
| Unit of measure | EA |
| Weight | 2671 g |
| Dimensions | 1 × 1 × 1 mm |
| Dangerous goods | No |
You might also like
BPA000173198

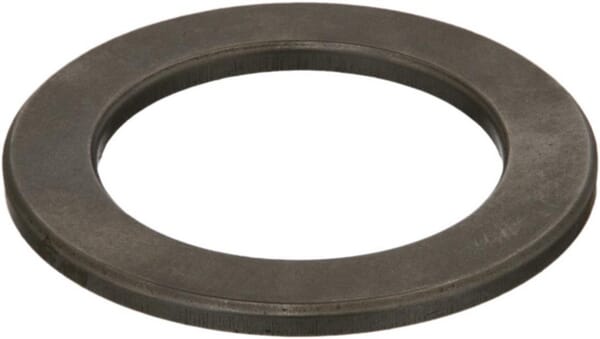

SKF Bearing washer 7500LS4060
£15.79 excl.
£18.95 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000082467

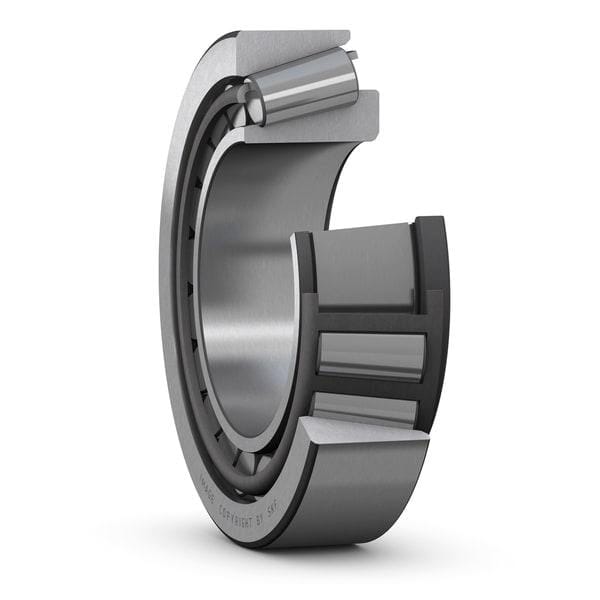

SKF Tapered roller bearing 130x280x63.75mm 30326J2
£2,208.14 excl.
£2,649.77 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000354313

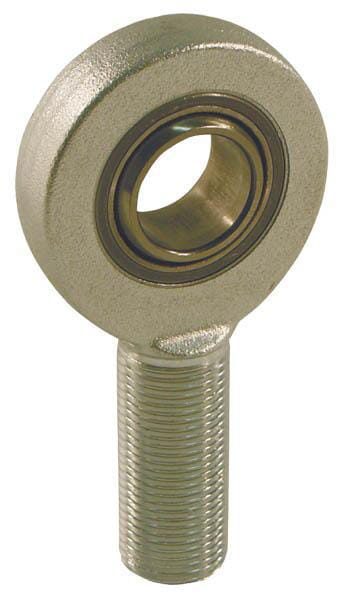

SKF Rod head SAKB5F
£37.84 excl.
£45.41 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000294172

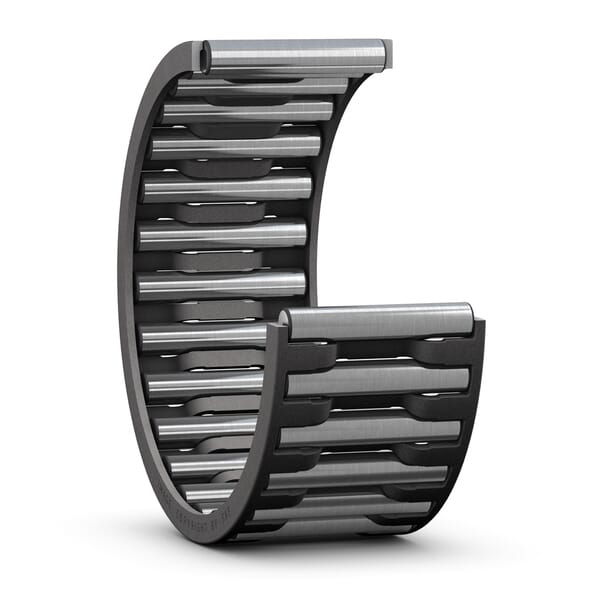

SKF Needle roller K52X57X12
£51.51 excl.
£61.81 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000399944

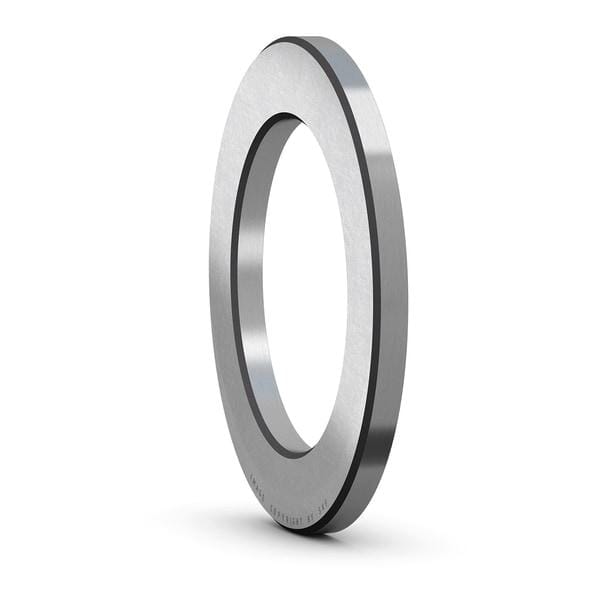

SKF Bearing washer WS81108
£23.66 excl.
£28.39 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000277765

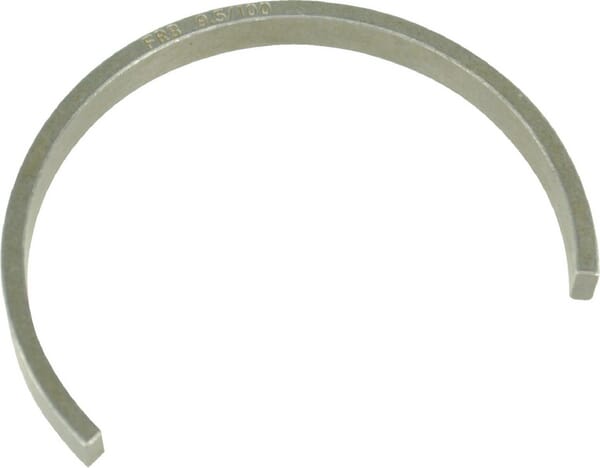

SKF Securing ring FRB12215
