£109.26
excl. VAT
£131.11 incl. VAT
£131.11
incl. VAT
£109.26 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
About this product

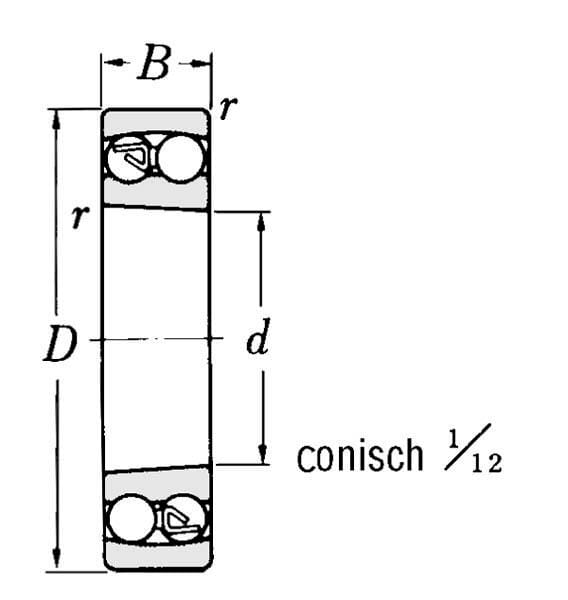

SKF self-aligning ball bearing, model 1309KC3, with a 45 mm tapered bore, 100 mm outer diameter, and 25 mm width. Supplied as a single unit. The bearing is a double-row design with a tapered inner ring and C3 radial internal clearance, suitable for applications involving considerable shaft deflection or alignment errors, including conveyor belts and steel production equipment. Rated for a basic dynamic radial load of 39 kN and basic static radial load of 13.4 kN, with a maximum rotation speed of 7500 r/min and reference speed of 6300 r/min. The bearing is constructed from steel with an open sealing design and is not regreasable. Weight is approximately 930 g. The product is identified by EAN 7316576620751.
Product details
| Application range | Bearing design with considerable shaft deflection or alignment errors, Conveyor belts, Equipment for steel production |
|---|---|
| Basic radial load dynamic | 39000 N |
| Basic radial load static | 13400 N |
| Bearing model type | Self-aligning ball bearings |
| Benefits | Correct operating play at high temperature or press fit |
| Bore type | Tapered |
| BWidth | 25 mm |
| Consists of | Self-adjusting roller bearing, Without expansion bush |
| Details | C3 radial bearing clearance |
| dInside diameter | 45 mm |
| DOutside diameter | 100 mm |
| Inner ring shape | Tapered |
| Limiting speed | 141.7 r/s |
| Material | Steel |
| Max rotation speed | 7500 r/min |
| Original number equivalent | 1309EKTN9C3 |
| Properties | Self-adjusting roller bearing, Double row, With conical inner ring |
| Radial internal clearance code | C3 |
| Ref rotation speed | 6300 r/min |
| Regreasable | No |
| Rows number | 2 |
| Sealing | Open |
| Unit | Each |
Logistics
| EAN | 7316576620751 |
|---|---|
| Unit of measure | EA |
| Weight | 930 g |
| Dimensions | 116 × 113 × 31 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000168957

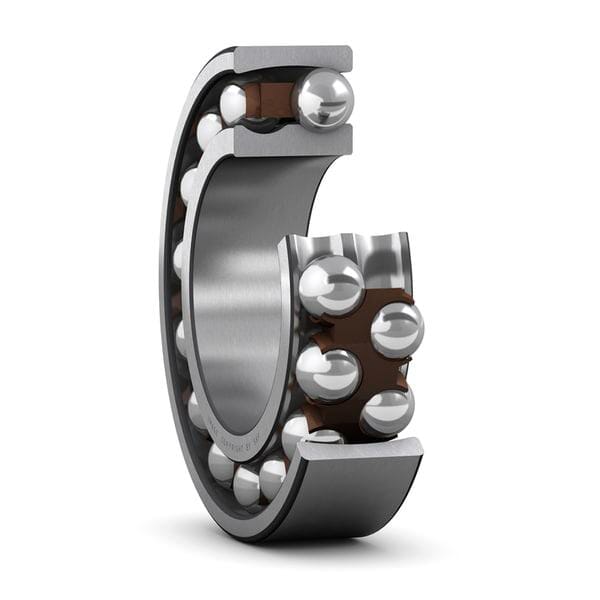

SKF Self-aligning ball bearing 45x100x25mm 75001309K
£131.56 excl.
£157.87 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000173533

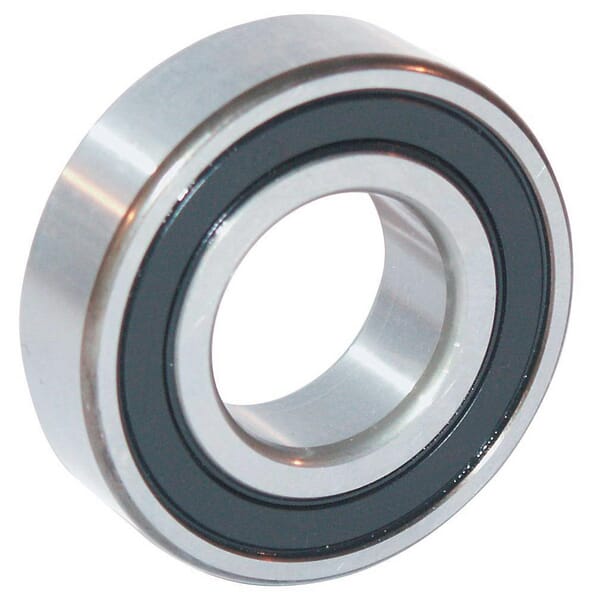

SKF Deep groove ball bearing 45x75x16mm 7500W60092RS
