About this product

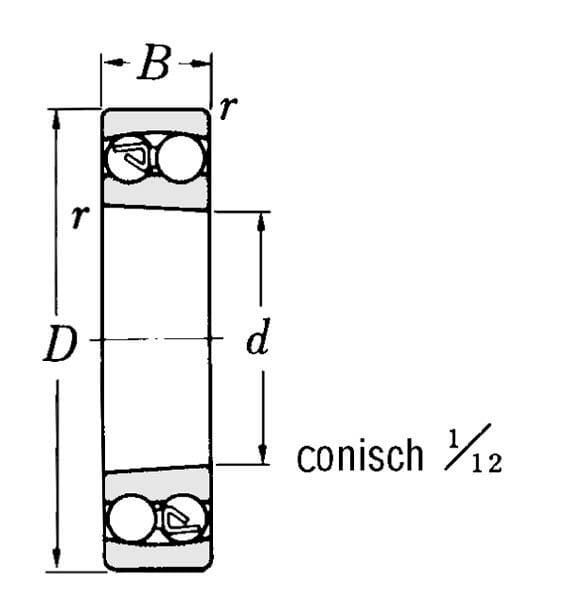

A SKF self-aligning ball bearing (model 2211E2RS1KTN9C3) with a 55 mm bore diameter, 100 mm outside diameter, and 25 mm width, sold as a single piece. The bearing features a double-row tapered inner ring design and is rated for dynamic radial loads up to 27,600 N and static radial loads up to 10,600 N. It has a contact angle of 7.43° and a limiting speed of 71.7 r/s (12,000 r/min reference rotation speed). The bearing incorporates 2RS sealing, is not regreasable, and carries a radial internal clearance code of C3. It is manufactured from steel and is suitable for applications including conveyor systems, steel production equipment, and bearing designs tolerating considerable shaft deflection or alignment errors. The bearing weighs 798 g and is supplied with EAN 7316577301802.
Product details
| Application range | Bearing design with considerable shaft deflection or alignment errors, Conveyor belts, Equipment for steel production |
|---|---|
| Basic radial load dynamic | 27600 N |
| Basic radial load static | 10600 N |
| Bearing model type | Self-aligning ball bearings |
| Bore type | Tapered |
| BWidth | 25 mm |
| Consists of | Self-adjusting roller bearing, Without expansion bush |
| Contact angle | 7.43 ° |
| dInside diameter | 55 mm |
| DOutside diameter | 100 mm |
| Inner ring shape | Tapered |
| Limiting speed | 71.7 r/s |
| Material | Steel |
| Original number equivalent | 2211E2RS1KTN9C3 |
| Properties | Self-adjusting roller bearing, Double row, With conical inner ring |
| Radial internal clearance code | C3 |
| Ref rotation speed | 12000 r/min |
| Regreasable | No |
| Rows number | 2 |
| Sealing | 2RS |
| Unit | Each |
| Weight | 0.783 kg |
Logistics
| EAN | 7316577301802 |
|---|---|
| Unit of measure | EA |
| Weight | 798 g |
| Dimensions | 117 × 115 × 33 mm |
| Dangerous goods | No |
