About this product
A SKF self-aligning ball bearing (model 2216ETN9C3) with an 80 mm bore, 140 mm outside diameter, and 33 mm width, supplied as a single unit. The bearing features a double-row self-aligning design with a cylindrical bore and inner ring, capable of accommodating shaft deflection and minor alignment errors. It has a radial internal clearance code of C3, a contact angle of 8.27°, and an open sealing arrangement. The bearing is manufactured from steel and is non-regreasable.
Load ratings are 65,000 N for basic dynamic radial load and 25,500 N for basic static radial load. The limiting speed is 100 r/s (6,000 r/min equivalent), with a reference rotation speed of 8,500 r/min. The bearing is suitable for applications involving considerable shaft deflection, conveyor belt systems, and steel production plant installations. The bearing weighs approximately 2 kg and carries the EAN 7316577737694.
Product details
| Application range | Bearing design with considerable shaft deflection or alignment errors, Conveyor belts, Plants for steel production |
|---|---|
| Basic radial load dynamic | 65000 N |
| Basic radial load static | 25500 N |
| Bearing model type | Self-aligning ball bearings |
| Bore type | Cylindrical |

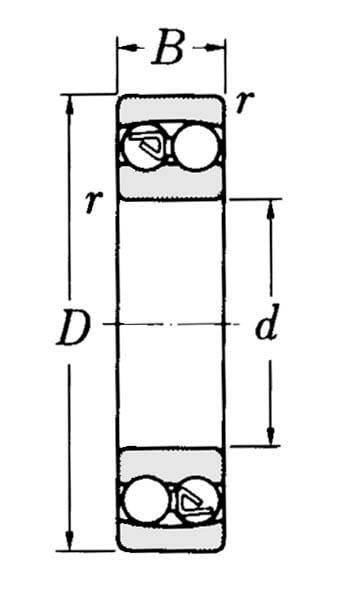

| BWidth | 33 mm |
| Contact angle | 8.27 ° |
| dInside diameter | 80 mm |
| DOutside diameter | 140 mm |
| Inner ring shape | Cylindrical |
| Limiting speed | 100 r/s |
| Material | Steel |
| Original number equivalent | 2216ETN9C3 |
| Properties | Self-adjusting roller bearing, Double row |
| Radial internal clearance code | C3 |
| Ref rotation speed | 8500 r/min |
| Regreasable | No |
| Rows number | 2 |
| Sealing | Open |
| Unit | Each |
| Weight | 1.995 kg |
Logistics
| EAN | 7316577737694 |
|---|---|
| Unit of measure | EA |
| Weight | 1995 g |
| Dimensions | 1 × 1 × 1 mm |
| Dangerous goods | No |
