SKF Spherical roller bearing 25x52x18mm 22205EC3

About this product

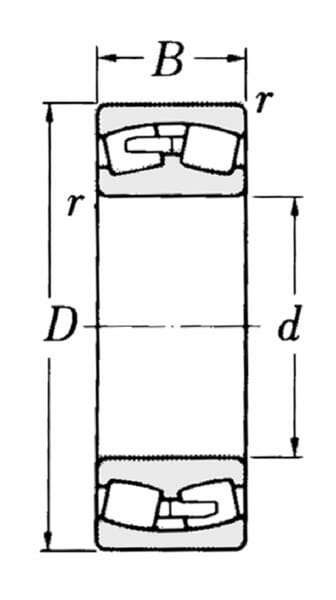

A SKF spherical roller bearing, model 22205EC3, with a 25 mm cylindrical bore, 52 mm outside diameter, and 18 mm width. Sold as a single piece. This two-row spherical roller bearing is rated for a basic dynamic radial load of 49,900 N and a static radial load of 44,000 N, with a maximum rotation speed of 17,000 r/min and reference speed of 13,000 r/min. The bearing features an open sealing design and is regreasable. The radial internal clearance code is C3, optimised for applications involving heavy radial loads and skewed axle positions, including use in pumps, ventilators, cranes, and conveyor belt systems.

Manufactured from steel, the bearing weighs 181 g and measures 67 mm in length, 65 mm in width, and 28 mm in height when packaged. The product carries EAN 7316571653280.
