About this product

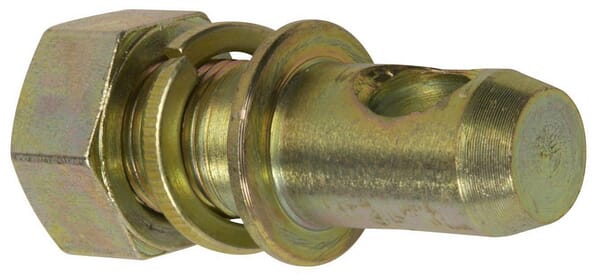

A stabiliser pin for tractor lower link mounting, sized M19 with a 3/4" UNF thread engagement. The pin features a 19 mm head diameter and 19 mm head height, with an 11 mm thread length. It is zinc-plated for corrosion resistance and supplied as a single piece weighing approximately 225 g. The pin measures 110 mm length, 60 mm width, and 35 mm height overall. This component is designed for use as a lower link pin within the linkage triangle assembly on compatible tractor three-point linkage systems.

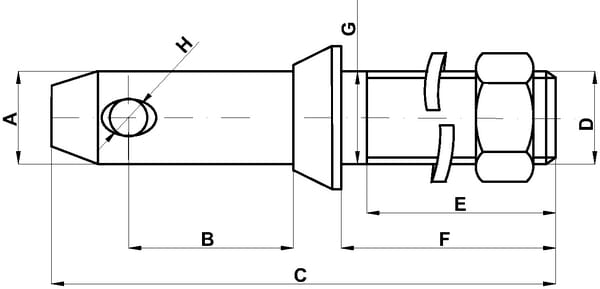

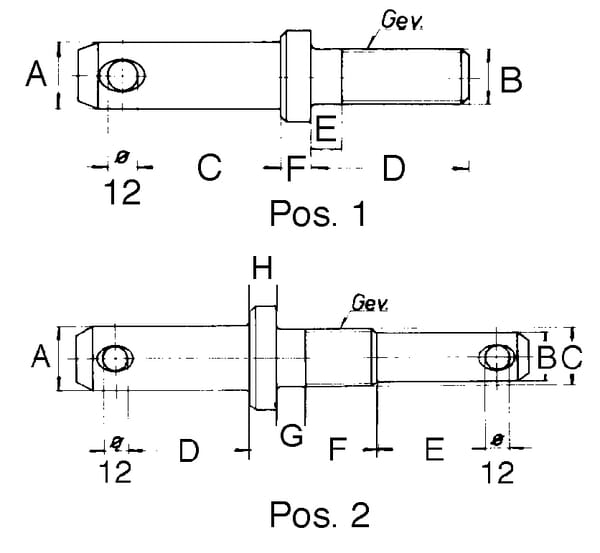

Product details
| Application range | Lower link pin for linkage triangle (lower) |
|---|---|
| EThread length | 11 mm |
| GHead diameter | 19 mm |
| Head height | 19 mm |
| Properties | Zinc-plated |
| Thread diameter | M19 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 225 g |
| Dimensions | 110 × 60 × 35 mm |
| Dangerous goods | No |
