£10.44
excl. VAT
£12.53 incl. VAT
£12.53
incl. VAT
£10.44 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Colour | Blue, Black |
|---|---|
| Connection 1, thread diameter | 1-1/4 Inch |
| Connection 1, type | Quick coupling |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 40 mm |
| Connection 2, type | Quick coupling |
| Connection 2, type - male/female | Female |
| Connection 3, type | Thread |
| Connection 3, type - male/female | Male |
| Connection no 1 diameter | 40 mm |
| Long description | Application:, Water supply, pipe connection and water treatment plants, sport irrigation and gardening, agriculture and horticulture irrigation., Easy and fast assembly without any particular preparation of the pipe., Materials:, Top quality raw materials which makes S16 fittings highly resistant and reliable in time (up to 50 years), suitable for drinking water and environment compatible., Body, nut, thrust ring: virgin polypropylene (PP-B), high mechanical resistant and thermal stability in course of time. Top UV resistant master-batch are used (grade 8-ASTM D2565) for colored nuts., Grip ring: copolymer polyacetal resin (POM), white color., Conical gasket: rubber NBR or EPDM, hardness 70sh, black color, Reinforcement ring: only for female threads >=1 ½ “, stainless steel, Working temperature: -10/+45 °C, Nominal pressure (PN) and product approvals:, S16 fittings are designed and suitable to be used at PN16 pressure rate., Fittings are tested and certified by major international approval institutions, such as: KIWA (Netherlands), DVGW (Germany), ACS (France), WRAS (UK), IIP (Italy), ETA (Denmark) |
| Material | Polypropylene |
| Max working pressure | 16 BAR |
| Max working temperature | 45 °C |
| Min. working temperature | -10 °C |
| Properties | BSP male thread, Clamping connection |
| Pros | By tightening the nut – Special Conical gasket – is also moving radially and increasing its compression towards the pipe wall so it balancing pipe defects such as undersize, ovalization and little scratches. |
| Quality label | WRAS |
| Shape | Tee (T) |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 392 g |
| Dimensions | 217 × 106 × 81 mm |
| Dangerous goods | No |
You might also like
BPA000234948

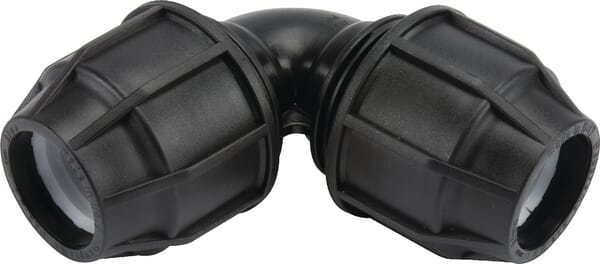

Supreme Elbow 16mm PExPE AZ99116
£2.06 excl.
£2.47 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000156449
Supreme S16 elbow coupling 63x1 1/2" male 654834S
£10.44 excl.
£12.53 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000234931

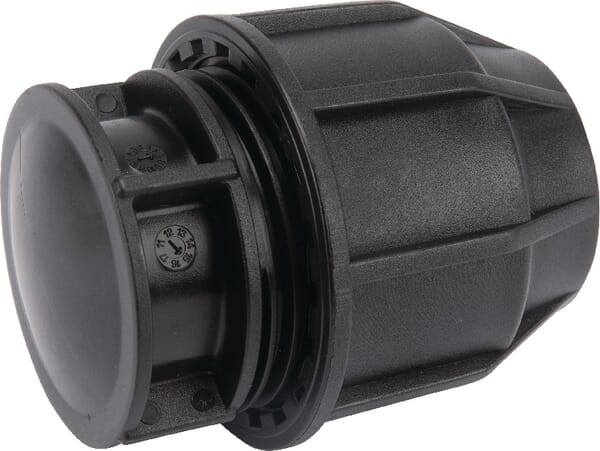

Supreme End fitting 32mm AZ91732
£2.00 excl.
£2.40 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000156333

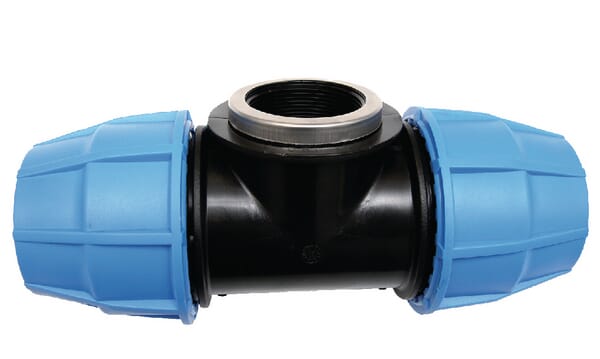

Supreme S16 T piece 50x1 1/2" F 654440S
£15.56 excl.
£18.67 incl.
In stock
Expected to ship on Friday 18 September
BPA000287277
Supreme Seal ring 40mm GSK040
£0.93 excl.
£1.12 incl.
In stock
Expected to ship on Monday 21 September
BPA000156373

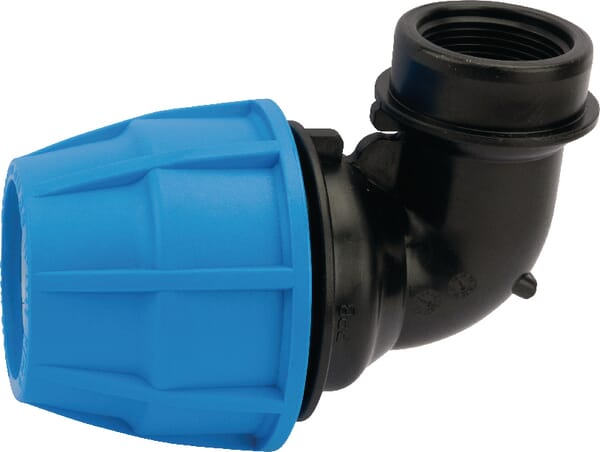

Supreme S16 elbow 50x1.1/4" female thread 654574S
