Product details
| Colour | Blue, Black |
|---|---|
| Connection 1, thread diameter | 1-1/2 Inch |
| Connection 1, type | Quick coupling |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 63 mm |
| Connection 2, type | Quick coupling |
| Connection 2, type - male/female | Female |
| Connection 3, type | Thread |
| Connection 3, type - male/female | Male |
| Connection no 1 diameter | 63 mm |
| Long description | Application:, Water supply, pipe connection and water treatment plants, sport irrigation and gardening, agriculture and horticulture irrigation., Easy and fast assembly without any particular preparation of the pipe., Materials:, Top quality raw materials which makes S16 fittings highly resistant and reliable in time (up to 50 years), suitable for drinking water and environment compatible., Body, nut, thrust ring: virgin polypropylene (PP-B), high mechanical resistant and thermal stability in course of time. Top UV resistant master-batch are used (grade 8-ASTM D2565) for colored nuts., Grip ring: copolymer polyacetal resin (POM), white color., Conical gasket: rubber NBR or EPDM, hardness 70sh, black color, Reinforcement ring: only for female threads >=1 ½ “, stainless steel, Working temperature: -10/+45 °C, Nominal pressure (PN) and product approvals:, S16 fittings are designed and suitable to be used at PN16 pressure rate., Fittings are tested and certified by major international approval institutions, such as: KIWA (Netherlands), DVGW (Germany), ACS (France), WRAS (UK), IIP (Italy), ETA (Denmark) |
| Material | Polypropylene |
| Max working pressure | 16 BAR |
| Max working temperature | 45 °C |
| Min. working temperature | -10 °C |
| Properties | BSP male thread, Clamping connection |
| Pros | By tightening the nut – Special Conical gasket – is also moving radially and increasing its compression towards the pipe wall so it balancing pipe defects such as undersize, ovalization and little scratches. |
| Quality label | WRAS |
| Shape | Tee (T) |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 992 g |
| Dimensions | 294 × 134 × 114 mm |
| Dangerous goods | No |
You might also like
BPA000230517
Supreme S16 T piece 40x¾" F AL71714034
£25.73 excl.
£30.88 incl.
In stock
Expected to ship on Friday 18 September

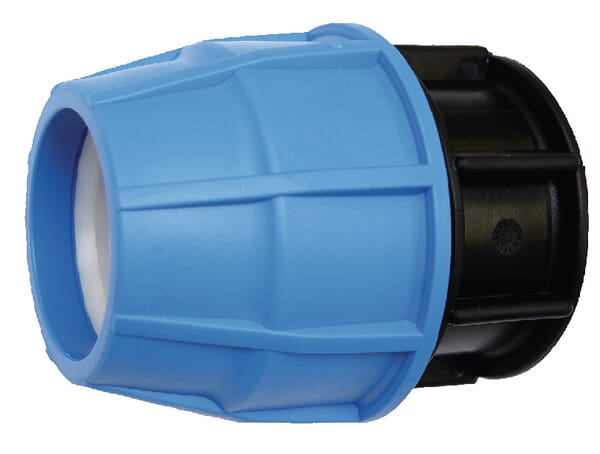

BPA000156391
Supreme Endfitting S16 63 mm 654630S
£9.86 excl.
£11.83 incl.
In stock
Expected to ship on Friday 18 September
BPA000234944
Supreme T piece 16mm PE AZ96116
£3.21 excl.
£3.85 incl.
Backorder available
Usually ships within 3–8 weeks

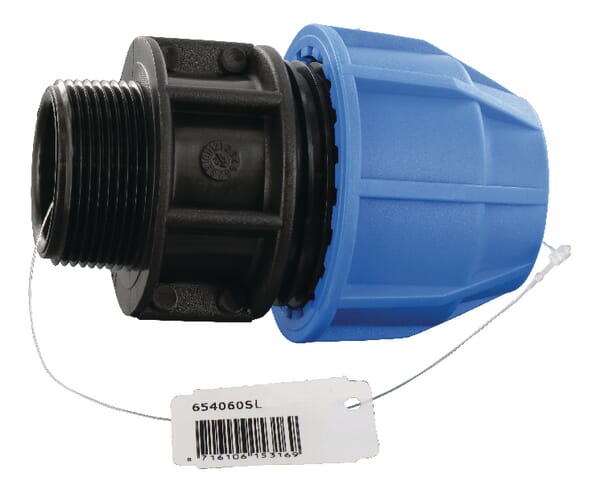

BPA000156221
Supreme S16 coupling 40x1 1/2", male 654060SL
£4.73 excl.
£5.68 incl.
In stock
Expected to ship on Friday 18 September

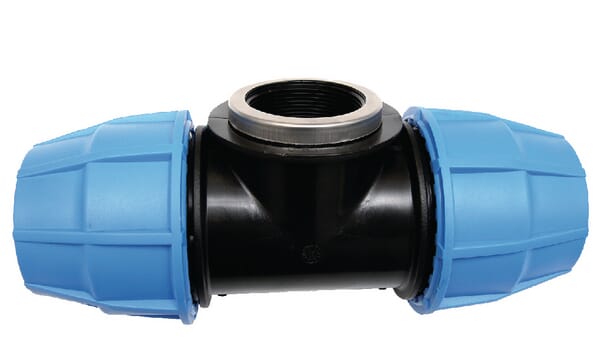

BPA000156336
