£59.03
excl. VAT
£70.84 incl. VAT
£70.84
incl. VAT
£59.03 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | As connection plug for electronics under the engine cover, on transmissions or in cabs |
|---|---|
| Benefits | Designed specifically for dirty environments, Wear-resistant plastic, Very user-friendly |
| Cable position type - connection no 1 | Standard |
| Connection 1, type - male/female | Male |
| Connection 2, connection type | DS16 |
| Connection 3, connection type | DS16 |
| Connection type | DS12 |
| Consists of | Individual components (self-assembly plug) |
| Content in sale unit | 1 pcs |
| Details | Dustproof and waterproof, Thermoplastic housing, Easy mounting |
| DIN standard | 40050 |
| Electric application category | Signal, Sensor |
| Housing material | Plastic |
| Max working temperature | 125 °C |
| Min working temperature | -55 °C |
| Nominal voltage | 250 V |
| Nominal voltage range | 12-48 V |
| Number of poles | 16 |
| Properties | Housing size: Shell 18 & Shell 24, Integrated cable seal, Silicone seal |
| Protection class IP | 6K9K |
| Series | HDP |
| Technical info | HDP20 is the plastic version of HD30 |
| Type | SH24 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
DS046020412141
TE Connectivity DEUTSCH Contact pin male DS12 Male DS046020412141
£0.96 excl.
£1.15 incl.
DS11226390
TE Connectivity DEUTSCH Nut HD30 SH 24 DS11226390
£3.81 excl.
£4.57 incl.
DS112264
TE Connectivity DEUTSCH Spring washer HDP30 SH24 DS112264
£3.74 excl.
£4.49 incl.
DS114010
TE Connectivity DEUTSCH Tools Extract 12 DS114010
£4.31 excl.
£5.17 incl.
DS114017
TE Connectivity DEUTSCH Sealing Pin 12 / 16 DS114017
£0.13 excl.
£0.16 incl.
DSWHDS241
TE Connectivity DEUTSCH Cable guide SH 24 DSWHDS241
£17.54 excl.
£21.05 incl.
DSWHDS242
TE Connectivity DEUTSCH Cable guide SH 24 90º DSWHDS242
£26.52 excl.
£31.82 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 47 g |
| Dimensions | 49 × 47 × 47 mm |
| Dangerous goods | No |
You might also like
BPA000250355
TE Connectivity DEUTSCH 2-Pin Female DTP Connector Housing DSDTP062S
£5.04 excl.
£6.05 incl.
In stock
Expected to ship on Friday 18 September
BPA000250347
TE Connectivity DEUTSCH Plug housing female, black, 8 poles Series DTM (1x), Deutsch DSDTM068SB
£7.94 excl.
£9.53 incl.
In stock
Expected to ship on Friday 18 September
BPA000249823
TE Connectivity DEUTSCH Spring washer HDP30 SH24 DS112264
£3.74 excl.
£4.49 incl.
In stock
Expected to ship on Friday 18 September

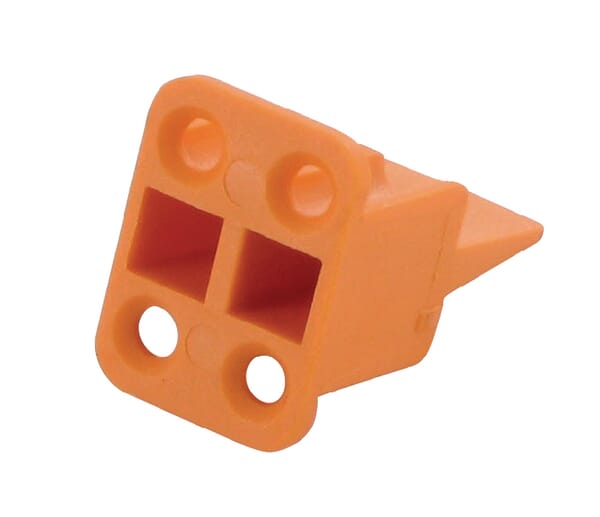

BPA000250516
TE Connectivity DEUTSCH Connector locking device 4 P. Female DSWP4S
£0.58 excl.
£0.70 incl.
In stock
Expected to ship on Friday 18 September
BPA000250336
TE Connectivity DEUTSCH Plug housing male, 12 poles Series DTM (1x), Deutsch DSDTM0612SA
£4.27 excl.
£5.12 incl.
In stock
Expected to ship on Friday 18 September

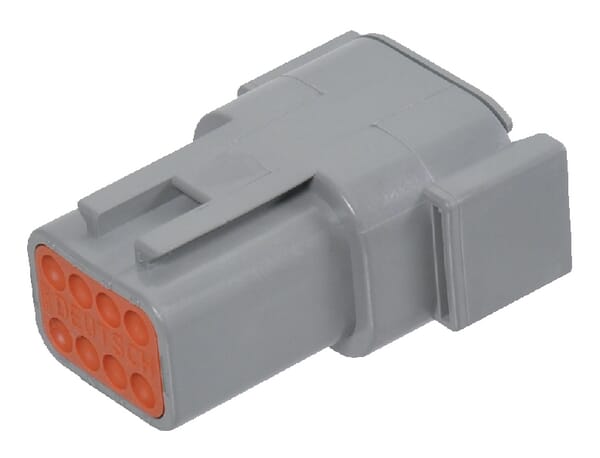

BPA000250334
