£39.29
excl. VAT
£47.15 incl. VAT
£47.15
incl. VAT
£39.29 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | As connection plug for electronics under the engine cover, on transmissions or in cabs |
|---|---|
| Benefits | Designed specifically for dirty environments, Wear-resistant plastic, Very user-friendly |
| Cable position type - connection no 1 | Standard |
| Connection 1, type - male/female | Female |
| Connection 2, connection type | DS16 |
| Connection 3, connection type | DS16 |
| Connection type | DS16 |
| Consists of | Individual components (self-assembly plug) |
| Content in sale unit | 1 pcs |
| Details | Dustproof and waterproof, Thermoplastic housing, Easy mounting |
| DIN standard | 40050 |
| Electric application category | Signal, Sensor |
| Housing material | Plastic |
| Max working temperature | 125 °C |
| Min working temperature | -55 °C |
| Nominal voltage | 250 V |
| Nominal voltage range | 12-48 V |
| Number of poles | 14 |
| Properties | Housing size: Shell 18 & Shell 24, Integrated cable seal, Silicone seal |
| Protection class IP | 6K9K |
| Series | HDP |
| Technical info | HDP20 is the plastic version of HD30 |
| Type | SH24 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 42 g |
| Dimensions | 42 × 42 × 37 mm |
| Dangerous goods | No |
You might also like
BPA000250396

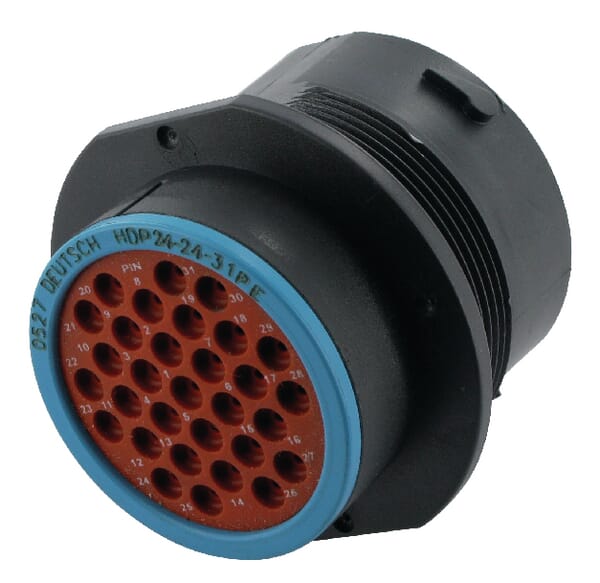

TE Connectivity DEUTSCH Chassis socket 31 P. Male HDP20 DSHDP242431PE
£45.55 excl.
£54.66 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000250410
TE Connectivity DEUTSCH Chassis socket 47 pins male HDP20 DSHDP262447PE
£71.68 excl.
£86.02 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000250381
TE Connectivity DEUTSCH Plug housing 31 P. Female HD30 DSHD362431SE072
£115.99 excl.
£139.19 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000249761
TE Connectivity DEUTSCH Cable guide HD30 SH24 DS04092012400
£21.24 excl.
£25.49 incl.
In stock
Expected to ship on Friday 18 September
BPA000250393
TE Connectivity DEUTSCH Chassis socket 21 P. Male HDP20 DSHDP242421PN
£45.43 excl.
£54.52 incl.
In stock
Expected to ship on Friday 18 September
BPA000250511

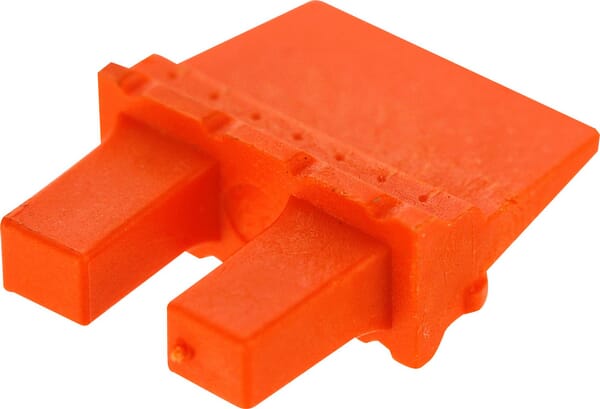

TE Connectivity DEUTSCH Locking device female, 8 poles Series DTM, Deutsch DSWM8P
