£3.55
excl. VAT
£4.26 incl. VAT
£4.26
incl. VAT
£3.55 excl. VAT
In stock
Expected to ship on Friday 18 September

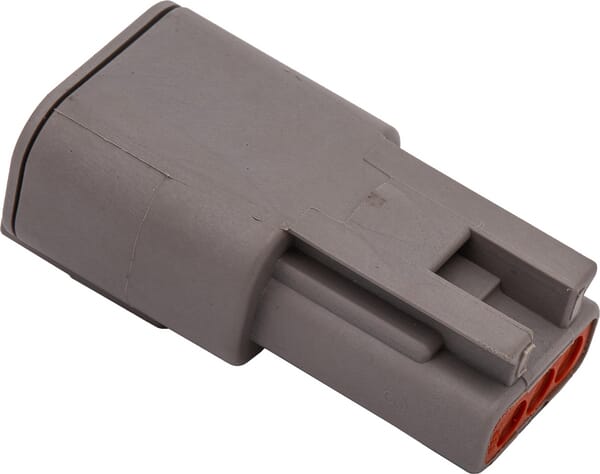

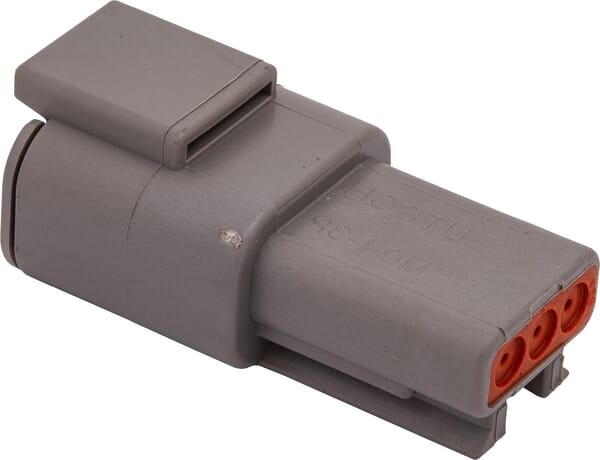

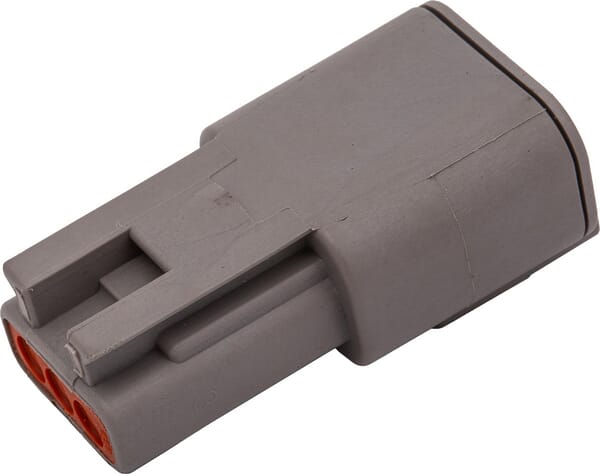

Product details
| Application range | On or in internal combustion engines, gearboxes and other heat-generating vehicle components, Lights, For AWG cables 16 to 24 or 1.00 mm² to 0.2 mm² |
|---|---|
| Benefits | Easy mounting |
| Connection 1, type - male/female | Female |
| Consists of | Individual components, Plug self-assembly |
| Content in sale unit | 1 pcs |
| Details | Modular design |
| DIN standard | 40050 |
| Long description | Application:, On or in internal combustion engines, gearboxes and other heat-generating vehicle components, Lights, For AWG cables 16 to 24 or 1.00 mm² to 0.2 mm², Benefits:, Easy mounting, Consist of:, Individual components, Plug self-assembly, Details:, Modular design, Properties:, Thermoplastic housing, Silicone seal, Integrated cable seal, Encoding type A: grey, B: black, C: green, D: brown, 7.5 ampere at 125°C continuous use, Pin size: 20 |
| Max. cable cross section | 1 mm² |
| Max working temperature | 125 °C |
| Min. cable cross section | 0.2 mm² |
| Min working temperature | -55 °C |
| Nominal voltage | 1500 V |
| Number of poles | 3 |
| Product details | Lighting, For cables AWG 16 to 24 or 1.00mm² to 0.2mm², Thermoplastic housing, Silicone seal, Integrated cable seal, Key type A grey, B black, C green or D brown, 7.5 amps at 125°C constant load, Pin size 20 |
| Properties | Thermoplastic housing, Silicone seal, Integrated cable seal, Encoding type A: grey, B: black, C: green, D: brown, 7.5 ampere at 125°C continuous use, Pin size: 20 |
| Pros | Modular design, Easy to assemble, Separate components, Assemble plugs yourself |
| Protection class IP | 69, 20, 6K9K |
| Series | DTM |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 6 g |
| Dimensions | 41 × 21 × 17 mm |
| Dangerous goods | No |
